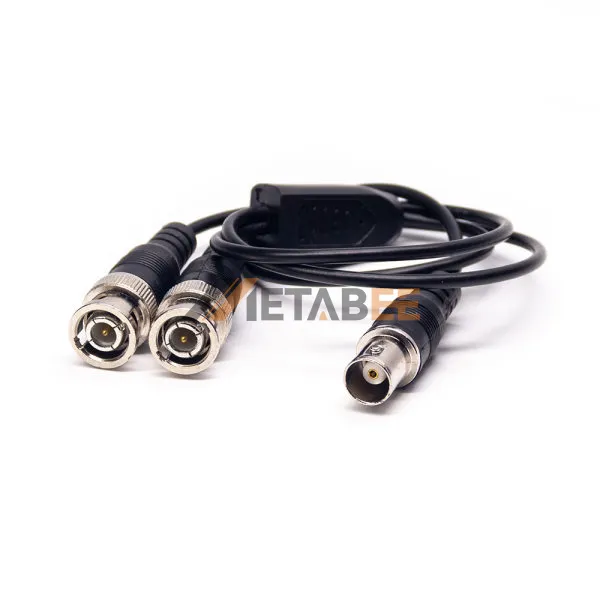

BNC-Buchse auf Dual-BNC-Stecker-Verlängerungskabel mit 30 cm 50 Ohm RG174-Koaxialkabel

ROHS Test Report AGC07686230401-004-RF CableROHS Certificate AGC07686230401-C004 RF Cable ConnectorREACH Test Report AGC07686230401-010 RF Cable Connector
SKU: ID20221100537
MPN: R02-B01-10022-30

Schlüsselmerkmale

  • Einfache Konstruktion, gute Stabilität und Kosteneffizienz
  • Gute Beständigkeit gegen elektromagnetische Störungen
  • Verfügt über hervorragende elektrische und mechanische Eigenschaften
  • Starke Anpassungsfähigkeit an die Umgebung
  • Leistung auch über kurze Distanzen wie bei Hausinstallationen sehr gut
Auf Lager
Menge
1
Einzelpreis
¥ 93.69
Gesamtpreis
¥ 93.69
¥ 93.69
Attribut
Wert
Hersteller
Renhotec
Farbe
Schwarz
Temperaturbereich
-40~+85
Abschirmung
Geschirmt
Impedanz
50 Ohm
Ausrichtung des ersten Steckers
Gerade
Geschlecht des ersten Kontakts
Weiblich
2. Kontaktgeschlecht
Männlich
Ausrichtung des zweiten Steckers
Gerade
1. Anschluss
BNC-Buchse
2. Anschluss
BNC-Stecker
Beschreibung
  • Simple Construction, Good Stability and Cost-Effective
  • Good resistance to electromagnetic interference
  • Has excellent electrical and mechanical properties
  • Strong adaptability to the environment
  • Also perform very well over short distances such as home installations

Introduction to RF Cable

RF cable, also known as radio frequency cable, is a type of coaxial cable that is used to transmit radio frequency signals.RF cable is characterized by its ability to transmit high-frequency signals with minimal signal loss and interference.

It is constructed with a center conductor, an insulating layer, a braided or foil shield, and an outer jacket. The different components of the cable are designed to provide maximum signal integrity and protect the signal from external interference.

RF Cable Assemblies


RF Cable Assemblies Series

RF cables are cables used to transmit radio frequency signals. These signals can be used for various purposes, such as transmitting audio and video signals or communicating data transmission.


RF Cable Assembly Suitable Cable

For example, if the assembly will be used in a high-power RF application, a cable with low loss and high power handling capabilities will be required. In this case, a cable made from materials such as copper or silver-plated copper may be suitable.

  • Radio communication systems
  • Aerospace industry for accurate communication equipments
  • Military and space application
  • Ships and navy communication systems
  • Satellite communications
  • RF equipment in medicine and healthcare
