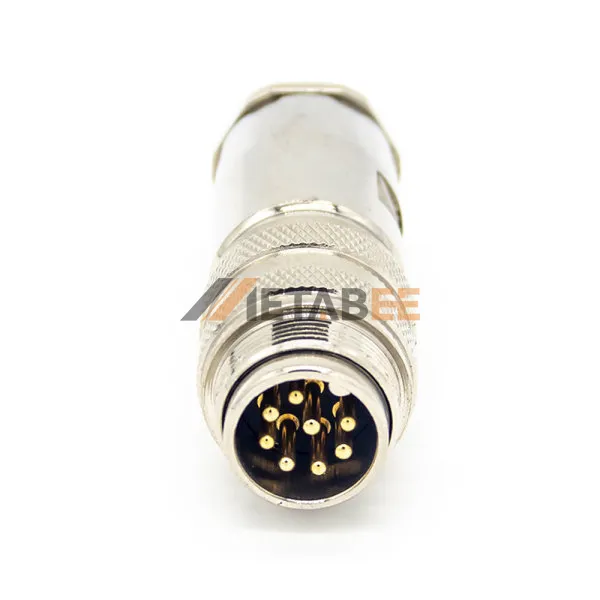

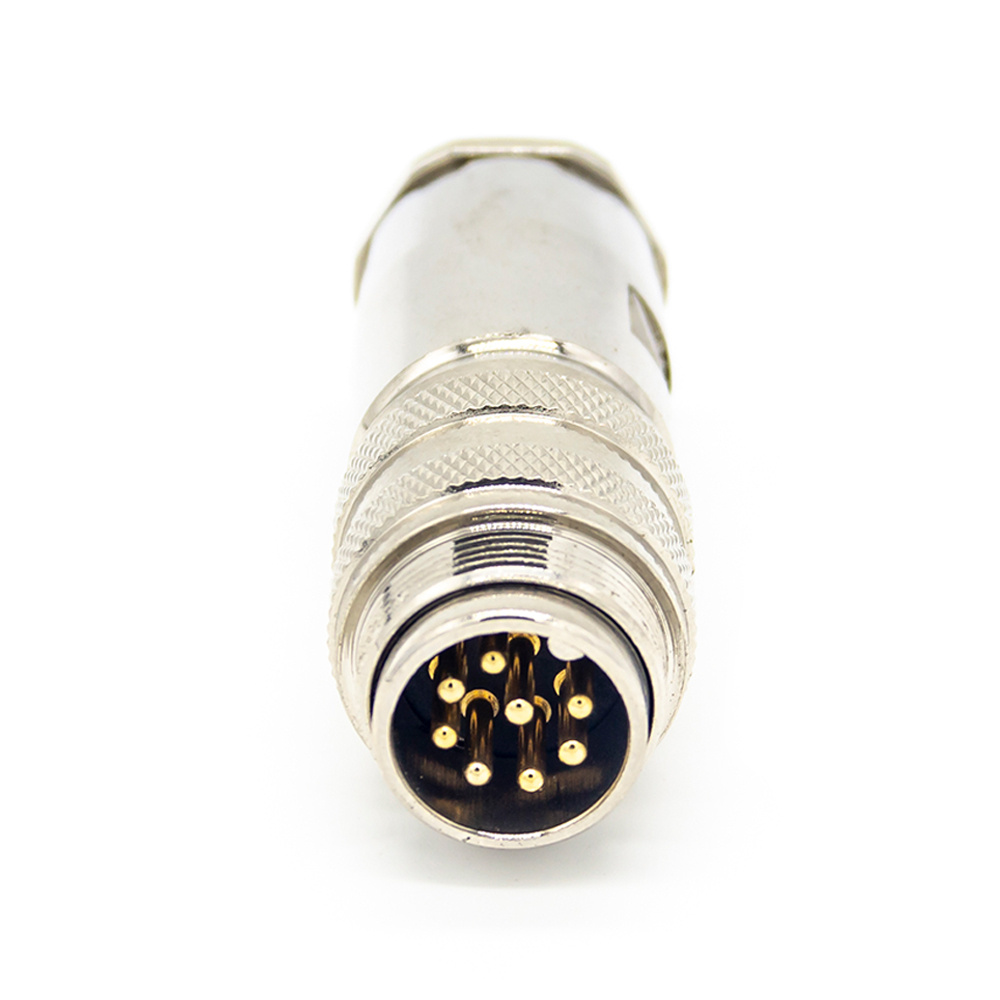

Conectores circulares M16 macho conector recto 8 contactos macho pin A código tornillo
Características principales
Hoja de datos y recursos
m16_male_metal_connector_drawing
En stock
Cant.
1
P.Unit.
€ 16.37
Precio ext.
€ 16.37
€ 16.37
Cant.
P.Unit.
Precio ext.
1+
€16.37
€ 16.37
50+
€15.43
€ 771.50
100+
€14.50
€ 1450.00
200+
€13.56
€ 2712.00
Especificaciones
Atributo
Valor
Buscar
Fabricante
dosina
Contactos
8 pines
Rango de temperatura
-20°C ~ +85°C
Orientación
Derecho
Tipo de conector
Enchufar
Tipo de fijación
roscado
Contacto Finalizar
Oro
Terminación del contacto
Tornillo exterior
Corriente nominal
5A
Tipo de montaje
Tipo de cable
Material del cuerpo
Aleación de cobre
Material de contacto
Aleación de cobre
Tensión nominal
60V
Protection Rating
IP67
Acabado de la carcasa
Galvanizado
Blindaje
Sin blindaje
Llave
A
Material aislante
PA66
Tamaño de la concha
M16
Tipo de contacto
Pasador macho
Serie
M16 Field Wireable Connector
Descripción
- Reliable, robust, and versatile connectivity solutions for industrial automation applications
- Environmental protection up to the IP67 standard
- Compact and lightweight plastic or metal shell connectors
- Available as field-installable connectors, receptacles, or with overmolded cables
- All connectors are available with gold plated contacts for higher conductivity
- Alternative mount arrangements for solder cup or PCB
AISG M16 Circular Connector
M16 connectors and cable assemblies are ideal for demanding industrial applications such as industrial automation and aerospace, marine, and telecom systems. M16 connectors are available in quick-lock wiring assembly types with IP67 protection and a vibration-resistant screw design
Metabee M16 connector series with rugged metal housing is the ideal solution to ensure uncompromised power and signal connections in harsh environments and industrial applications.
A Wide Range of AISG M16 Connectors is Available
Metabee M16 connectors are manufactured according to the AISG standard (AISG C 485), which offers 2 to 24 contacts with dip soldering, crimp, screw clamp, solder and stranded wire, and is also available with moulded cable. Some versions are shieldable, and users can expect more than 500 mating cycles.
M16 Connector Pin Arrangement
Metabee AISG M16 Circular Connectors Overview
- Industrial
- Automation & Process Control
- Robotics
- Medical
- Sensing & Instrumentation
Hoja de datos y recursos
m16_male_metal_connector_drawing
