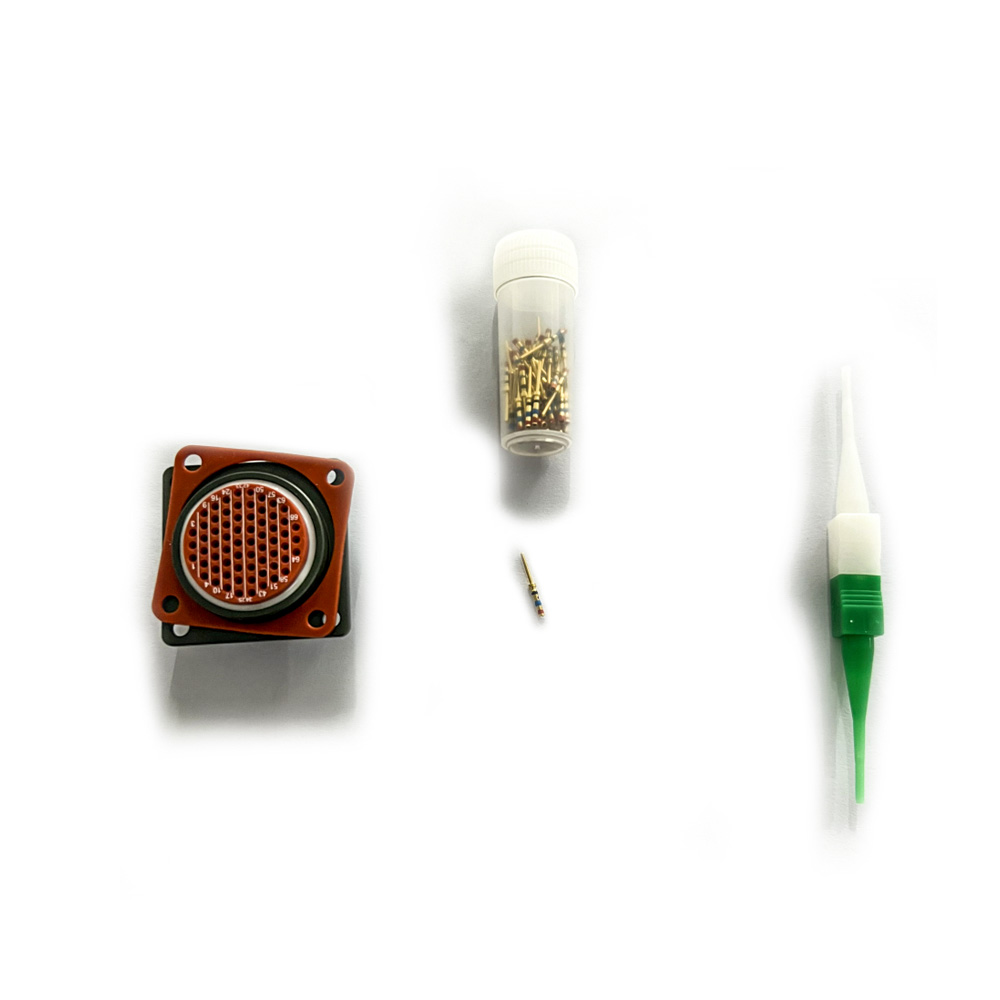

Conector D38999 Serie II, brida hembra macho MS27508E18B35PA, engarzado de 66 pines, orientación A
Características principales
En stock
Cant.
1
P.Unit.
€ 56.12
Precio ext.
€ 56.12
€ 56.12
Cant.
P.Unit.
Precio ext.
1+
€56.12
€ 56.12
25+
€55.01
€ 1375.25
50+
€54.28
€ 2714.00
100+
€53.18
€ 5318.00
Especificaciones
Atributo
Valor
Buscar
Fabricante
Renhotec
Color
verde oliva
Rango de temperatura
-65 ℃ a +175 ℃
Orientación
Derecho
Tipo de conector
Receptáculo
Tipo de fijación
Bayoneta
Característica de montaje
Flange
Contacto Finalizar
Oro
Terminación del contacto
Rizar
Corriente nominal
5A
Tipo de montaje
Montaje en panel
Material de contacto
Aleación de cobre
Protection Rating
IP67
Acabado de la carcasa
Cadmio verde oliva
Blindaje
Blindado
Llave
A
Número de posiciones
66
Material aislante
Thermoplastic
Arreglos de contacto
18-35
Tipo de contacto
Pasador macho
Serie
Series II
Descripción
- Standards The MIL-DTL-38999. It is a Qualified Parts List (QPL) connector.
- Coupling Options. The D38999 connector series is available in bayonet, breech, and threaded options.
- Ruggedization. MIL-DTL-39007 connectors are highly rugged and designed to be resistant to shock, vibration, harsh environments, and temperature extremes.
MIL-DTL-38999 Connectors Specification
Previously known as MIL-C-38999, MIL-DTL-38999 connectors come in four series: Series I, Series II, Series III, and Series IV. They are environmentally resistant connectors that use removable crimp contacts and have an operating range of -65 to +200℃.
D38999s are popular and widely used subminiature circular connectors for military and aerospace applications. With three coupling methods, nine shell sizes, and a wide variety of contact arrangements, our MIL-DTL-39007 connectors help give you the range of choices you need.
Shell Size
D38999 connectors are available in 9 shell sizes.
D38999 Connector Keying Position
Six distinct keying positions are available for each shell size in the D38999 series of connectors: N, A, B, C, D, and E. A plug will only mate with a receptacle with the same keying code. Having 6 different keying positions allows the use of up to six D38999/26FJ61P plugs in the same space without the possibility of mating a plug with the incorrect receptacle.
The 39007 specification defines families of shells that intermate to protect from vibration, shock, and moisture. Inside the connectors are inserts that can be configured for various contact arrangements.
- Electronics Boxes
- Non-military Robust Applications
- Transportation
- Robust Equipment Markets
