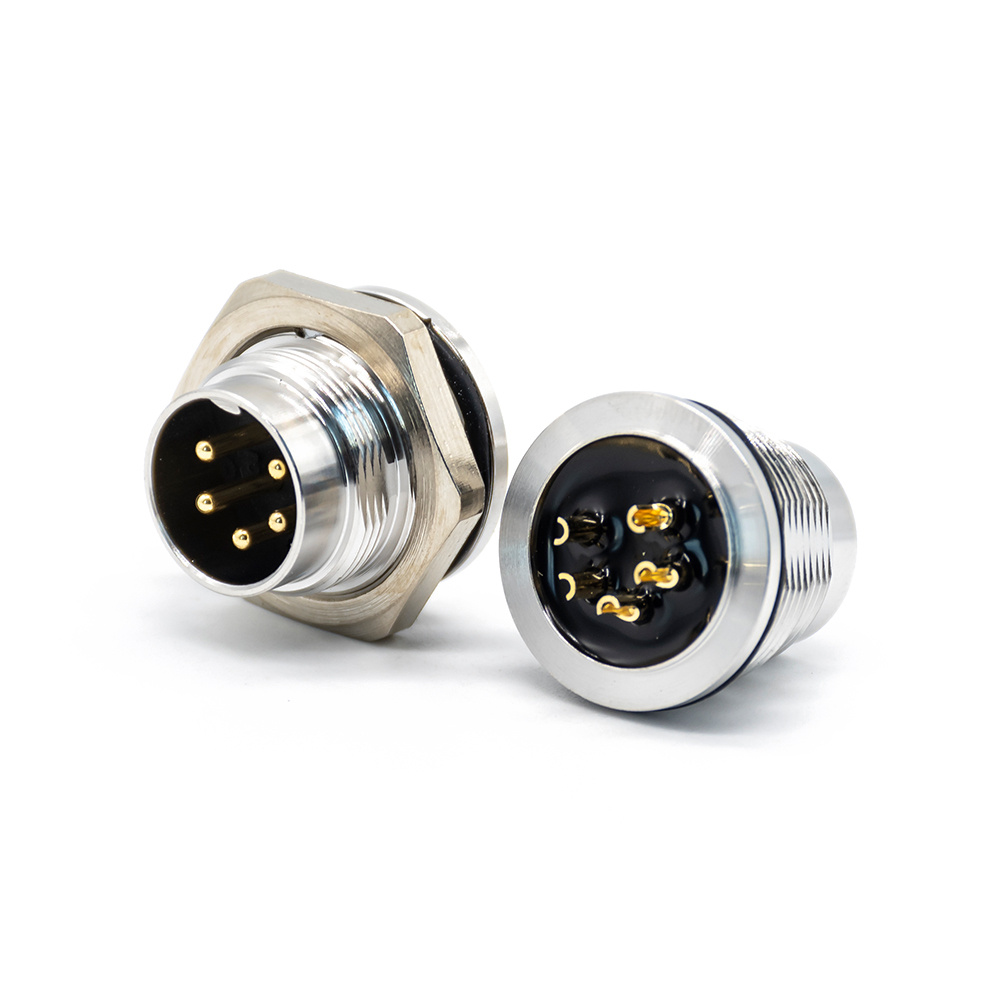

AISG 5pin Male Connector M16 Panel Mounting Socket A code Unshielded Straight Solder
Características principales
En stock
Cant.
1
P.Unit.
€ 8.78
Precio ext.
€ 8.78
€ 8.78
Cant.
P.Unit.
Precio ext.
1+
€8.78
€ 8.78
50+
€8.23
€ 411.50
100+
€7.68
€ 768.00
200+
€6.91
€ 1382.00
Especificaciones
Atributo
Valor
Buscar
Manufacturer
Dosin
Contacts
5 Pin
Temperature Range
-20°C ~ + 85°C
Orientation
Straight
Connector Type
Receptacle
Fastening Type
Threaded
Mounting Feature
Bulkhead - Front Side Nut
Contact Finish
Gold
Contact Termination
Solder Cup
Rated Current
6A
Mounting Type
Panel Mount
Body Material
Copper Alloy
Contact Material
Copper Alloy
Rated Voltage
250V
Protection Rating
IP67
Shell Finish
Zinc Plating
Shielding
Unshielded
Key
A
Insulation Material
PA66
Shell Size
M16
Contact Type
Male Pin
Series
M16 Panel Receptacles
Descripción
- Reliable, robust, and versatile connectivity solutions for industrial automation applications
- Environmental protection up to the IP67 standard
- Compact and lightweight plastic or metal shell connectors
- Available as field-installable connectors, receptacles, or with overmolded cables
- All connectors are available with gold plated contacts for higher conductivity
- Alternative mount arrangements for solder cup or PCB
AISG M16 Circular Connector
M16 connectors and cable assemblies are ideal for demanding industrial applications such as industrial automation and aerospace, marine, and telecom systems. M16 connectors are available in quick-lock wiring assembly types with IP67 protection and a vibration-resistant screw design
Metabee M16 connector series with rugged metal housing is the ideal solution to ensure uncompromised power and signal connections in harsh environments and industrial applications.
A Wide Range of AISG M16 Connectors is Available
Metabee M16 connectors are manufactured according to the AISG standard (AISG C 485), which offers 2 to 24 contacts with dip soldering, crimp, screw clamp, solder and stranded wire, and is also available with moulded cable. Some versions are shieldable, and users can expect more than 500 mating cycles.
M16 Connector Pin Arrangement
Metabee AISG M16 Circular Connectors Overview
- Industrial
- Automation & Process Control
- Robotics
- Medical
- Sensing & Instrumentation
Certificados

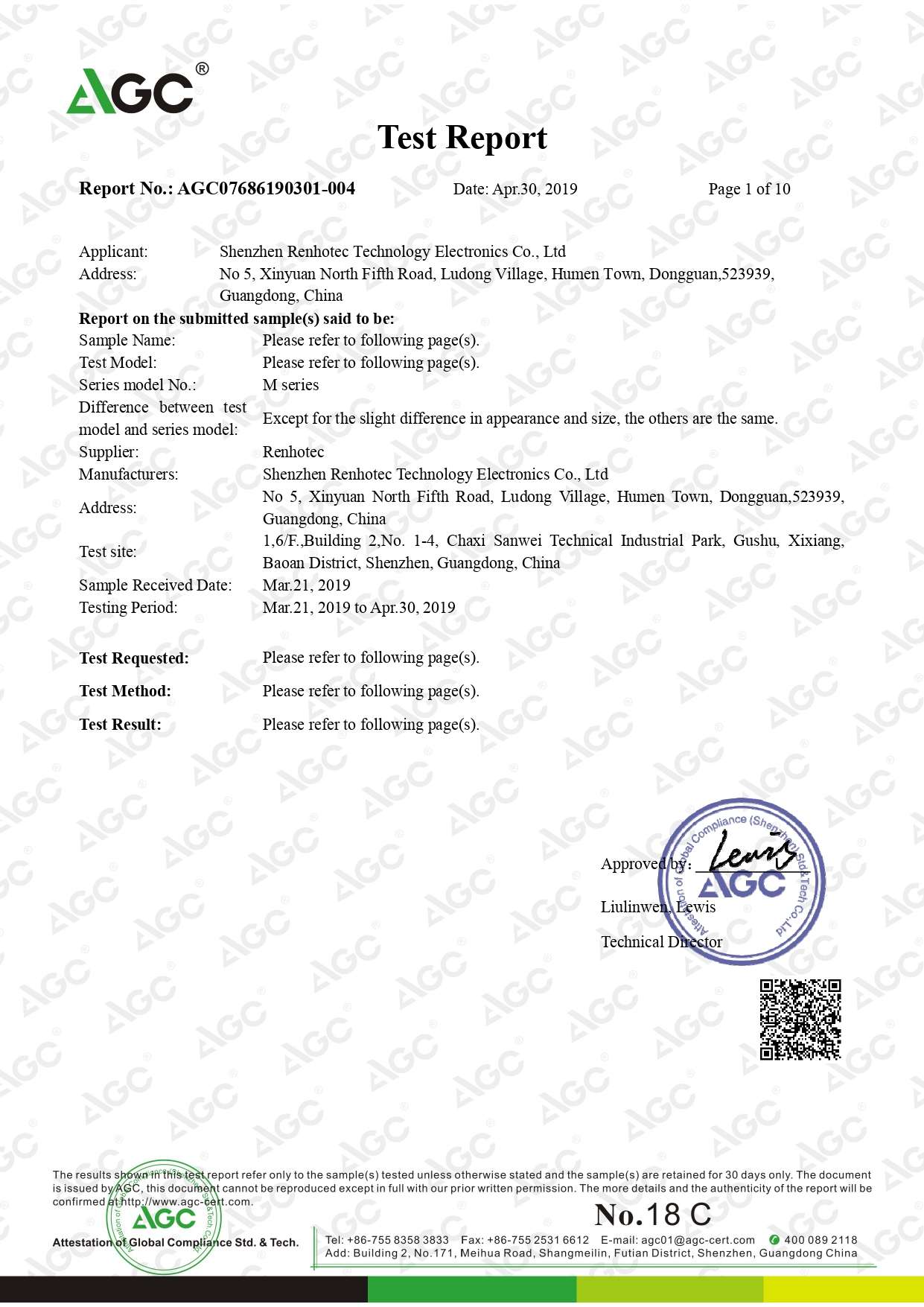

AGC07686211101-001S1-ROHS Test Report - M Series
AGC07686211101-001S1-ROHS Test Report - M Series

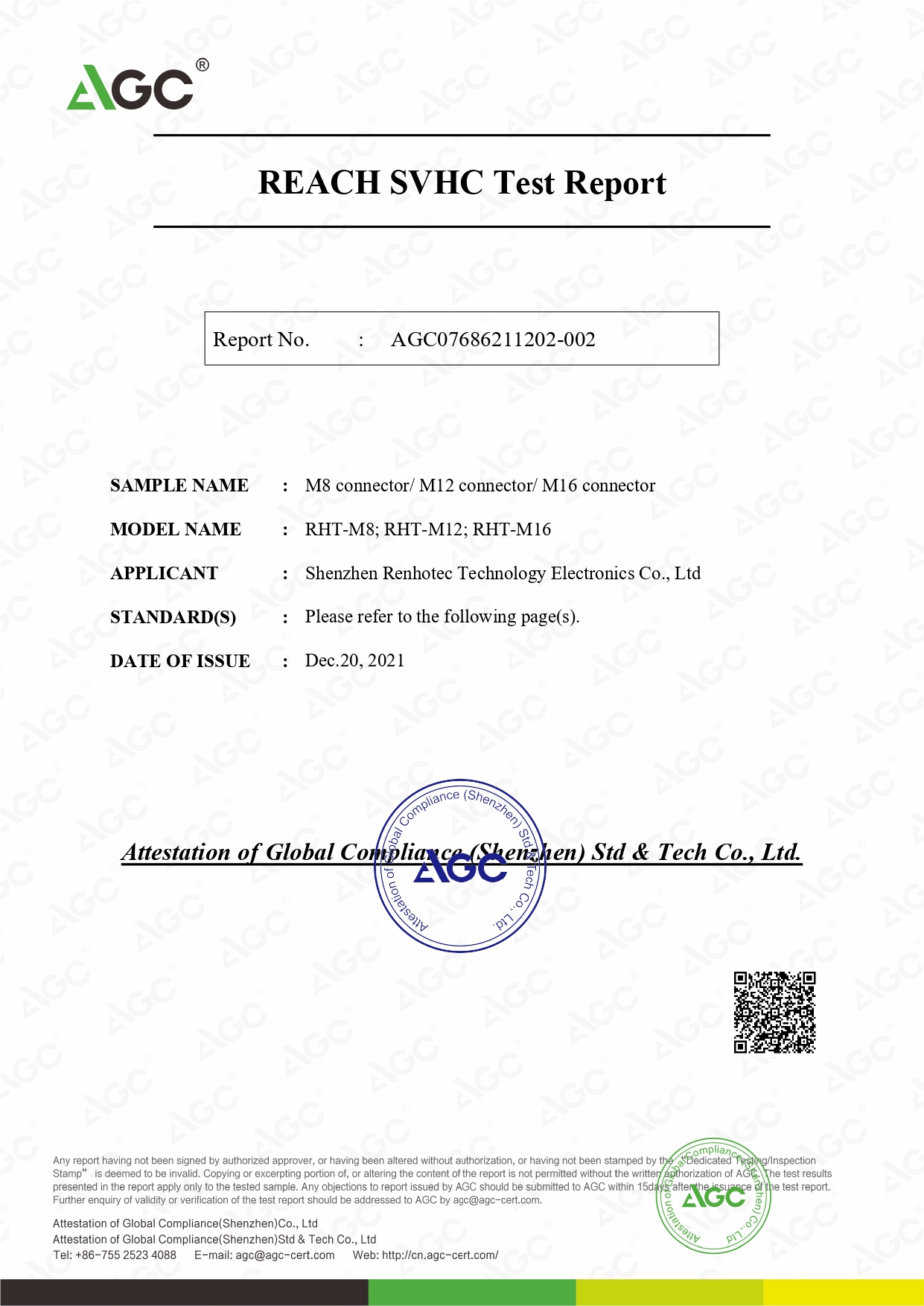

AGC07686211202-002 -REACH Certificate - M8 M12 M16 Connector
AGC07686211202-002 -REACH Certificate - M8 M12 M16 Connector

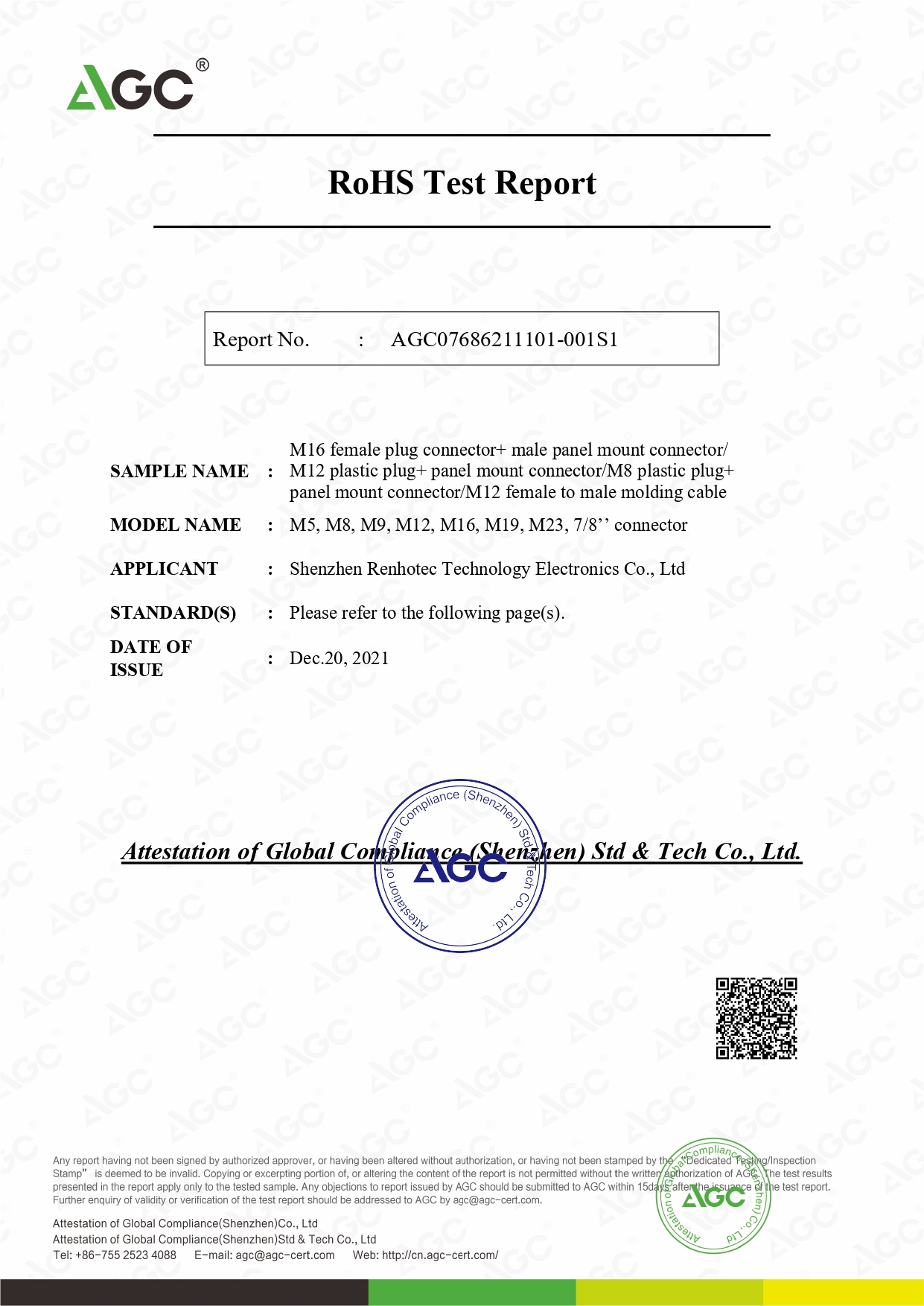

AGC07686211101-001S1 ROHS Test Report - M12 M8 M16 connector
AGC07686211101-001S1 ROHS Test Report - M12 M8 M16 connector
