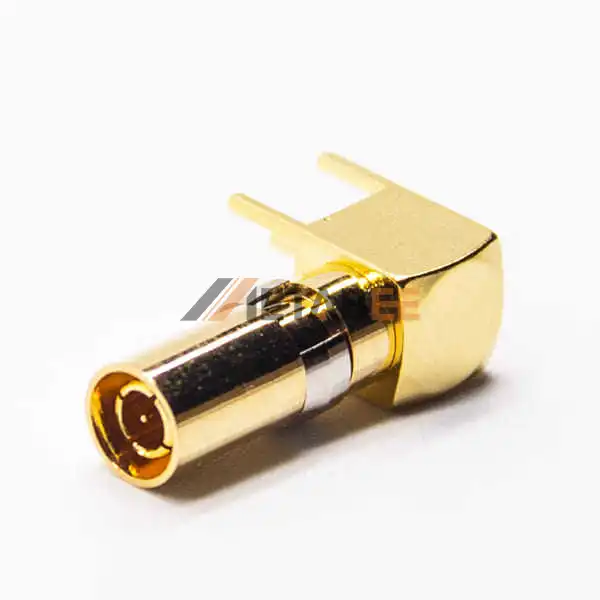

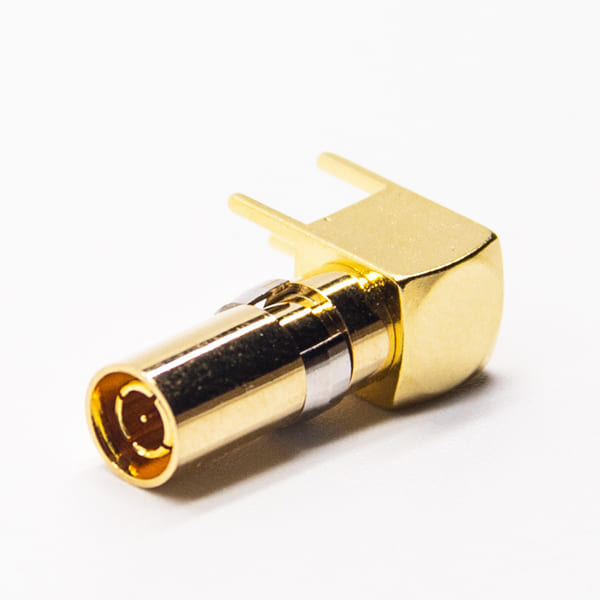

Montaje en panel de soldadura macho DIN de ángulo recto 1,0/2,3, orificio pasante, 75 ohmios
Características principales
Hoja de datos y recursos
id20220500287_rht-618-0713
En stock
Cant.
1
P.Unit.
€ 4.74
Precio ext.
€ 4.74
€ 4.74
Cant.
P.Unit.
Precio ext.
1+
€4.74
€ 4.74
200+
€4.27
€ 854.00
1000+
€3.64
€ 3640.00
2000+
€2.89
€ 5780.00
Especificaciones
Atributo
Valor
Buscar
Fabricante
Renhotec
Orientación
En ángulo recto
Tipo de conector
Enchufar
Tipo de fijación
Encajar
Característica de montaje
Through Hole
Contacto Finalizar
Oro
Terminación del contacto
Soldar
Tipo de montaje
Montaje en panel
Material de contacto
Latón
Acabado de la carcasa
Chapado en oro
Número de posiciones
1
Material aislante
PTFE
Tipo de contacto
Pasador macho
Terminación del escudo
Soldar
Descripción
- Quick connect and disconnect
- Space-saving compact design
- Ideal for high-vibration applications
- Available for a wide variety of cable types
- Delivers high conductivity and corrosion resistance
- The self-flared design uses standard hand tools for easy installation
Know about DIN1.0/2.3 Connector
The 1.0-2.3 connector series was originally introduced by the European telecom market in the 1990s. The compact design allows for a denser connector package, which makes the interface an ideal solution for applications where space constraints exist.
DIN 1.0-2.3 connectors can operate at 50 ohms and 10 GHz maximum frequency and 75 ohms and 4 GHz maximum frequency and feature high mechanical and electrical stability. They are 40% smaller than the 1.6-5.6 series. These performance specifications support high data rates for AES audio, SD video, HD video, 3Gb/s video, and other high-density digital broadcast formats.
DIN1.0/2.3 Connector
It has 50 Ω and 75 Ω impedance for choice and is compatible with the most widely used cable sizes. The push/pull lock and release feature makes it really easy to use.
Available for a wide variety of cable types
The DIN 1.0/2.3 connector is an RF connector used for coaxial cable at microwave frequencies. They were introduced in the 1990s for telecommunication applications.
Quick connect and disconnect
They are available in 50 Ω and 75 Ω impedance and are compatible with the most widely used cable sizes. It has a push/pull lock and release feature.
- Base Stations
- Data Communications
- Telecommunications/Central Office
- Routers
- Filters & Wireless Components
- Switching Equipment
- Video Processors
- Encoders
- Cameras
