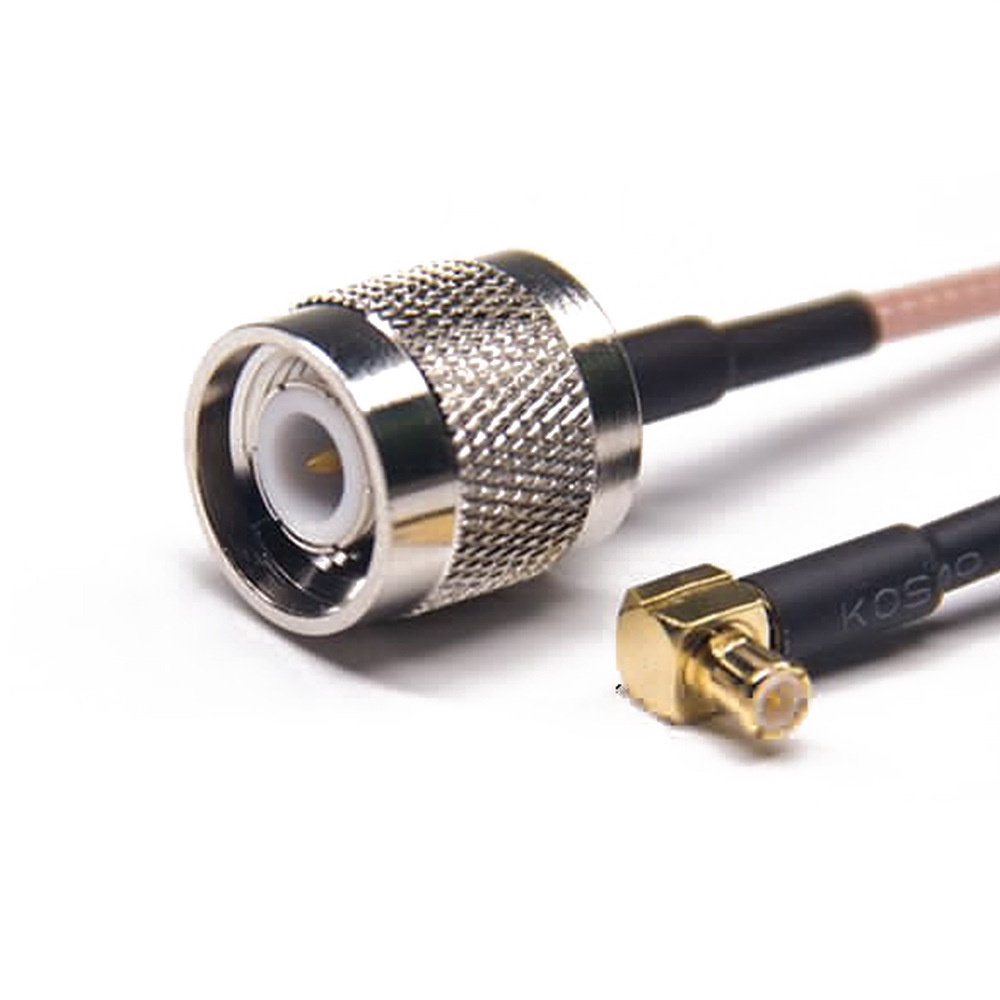

Ensembles de câbles RF prise TNC vers prise MCX à Angle droit, câble RG316 de 20cm, 50ohm
Caractéristiques clés
Spécifications
Attribut
Valeur
Rechercher
Fabricant
Renhotec
Couleur
Brun
Plage de température
-40~+85
Blindage
Blindé
Impédance
50 ohms
Orientation du 1er connecteur
Droit
Sexe du premier contact
Mâle
Sexe du 2e contact
Mâle
Orientation du 2ème connecteur
Angle droit
Style de conversion
TNC à MCX
1er connecteur
Prise TNC
2ème connecteur
Prise MCX
Description
- Simple Construction, Good Stability and Cost-Effective
- Good resistance to electromagnetic interference
- Has excellent electrical and mechanical properties
- Strong adaptability to the environment
- Also perform very well over short distances such as home installations
Introduction to RF Cable
RF cable, also known as radio frequency cable, is a type of coaxial cable that is used to transmit radio frequency signals.RF cable is characterized by its ability to transmit high-frequency signals with minimal signal loss and interference.
It is constructed with a center conductor, an insulating layer, a braided or foil shield, and an outer jacket. The different components of the cable are designed to provide maximum signal integrity and protect the signal from external interference.
RF Cable Assemblies
RF Cable Assemblies Series
RF cables are cables used to transmit radio frequency signals. These signals can be used for various purposes, such as transmitting audio and video signals or communicating data transmission.
RF Cable Assembly Suitable Cable
For example, if the assembly will be used in a high-power RF application, a cable with low loss and high power handling capabilities will be required. In this case, a cable made from materials such as copper or silver-plated copper may be suitable.
- Radio communication systems
- Aerospace industry for accurate communication equipments
- Military and space application
- Ships and navy communication systems
- Satellite communications
- RF equipment in medicine and healthcare
Certificats
ROHS Test Report AGC07686230401-004-RF Cable
ROHS Test Report AGC07686230401-004-RF Cable
ROHS Certificate AGC07686230401-C004 RF Cable Connector
ROHS Certificate AGC07686230401-C004 RF Cable Connector
REACH Test Report AGC07686230401-010 RF Cable Connector
REACH Test Report AGC07686230401-010 RF Cable Connector
