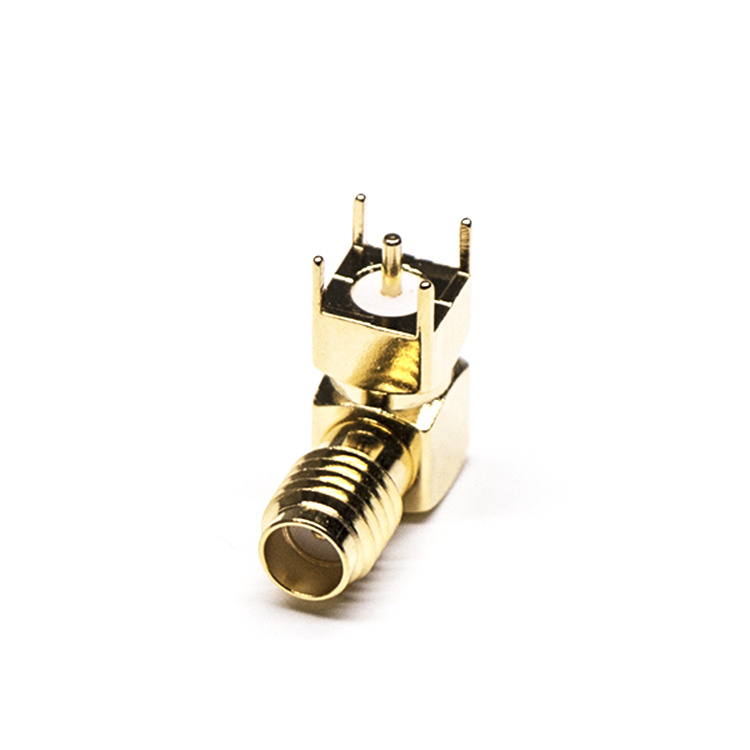

Right Angle SSMA Jack Solder Panel Mount Through Hole 50ohm
Caratteristiche principali
Scheda tecnica e risorse
id20220500778_rht-624-0005
Disponibile
Qtà.
1
P.Unit.
₩ 4905.00
Totale
₩ 4905.00
₩ 4905.00
Qtà.
P.Unit.
Totale
1+
₩4,905
₩ 4905.00
200+
₩4,421
₩ 884200.00
1000+
₩3,751
₩ 3751000.00
2000+
₩3,009
₩ 6018000.00
Specifiche
Attributo
Valore
Cerca
Produttore
Renhotec
Orientamento
Ad angolo retto
Tipo di connettore
Jack
Tipo di fissaggio
Filettato
Funzionalità di montaggio
Through Hole
Contatta Fine
Oro
Terminazione del contatto
Saldare
Tipo di montaggio
Montaggio a pannello
Materiale di contatto
Bronzo fosforoso
Finitura della scocca
Placcato in oro
Numero di posizioni
1
Materiale isolante
PTFE
Tipo di contatto
Perno femminile
Terminazione dello scudo
Saldare
Descrizione
- Space-saving alternative to standard SMA
- 50 Ohm nominal impedance
- Ideal for high-frequency applications
- The threaded coupling mechanism provides reliability for rugged designs
Knowledge about SSMA connectors
SSMA male coaxial connectors are available in RG174, RG316, and RG188 interface types with 50 Ohm impedance. SSMA male connectors use shielding/contact solder/solder as the connection method.
SSMA coaxial connectors have Nickel plated brass bodies.
The SSMA uses a 10-36 threaded coupling and is essentially a smaller version of the SMA.
The interface features compact construction, high frequency bandwidth, and high mechanical reliability. The male contacts are designed to be the same size as the cable conductor so they can be used as matched pins for optimized VSWR.
The SSMA connector is an RF connector with a nominal impedance of 50 ohms. Common applications include military aviation, telecommunications, RFID, antennas, test and measurement, and radar systems.
SSMA Interface Connector
The interface features compact construction, high frequency bandwidth, and high mechanical reliability. The male contacts are designed to be the same size as the cable conductor so they can be used as matched pins for optimized VSWR.
SSMA Connector Connection Method
SSMA connectors are manufactured in male or female gender with 50 Ohm impedance.
SSMA connectors are available in straight or right angle versions, as well as, bulkhead, 2-hole panel, 4-hole panel, or mountless options. These SSMA connector designs include crimp/solder, solder, solder (without contact), or solder/solder attachment methods.
- Mil-Aero
- Telecommunications
- RFID
- Antennas
- Test & Measurement
- Radar Systems
