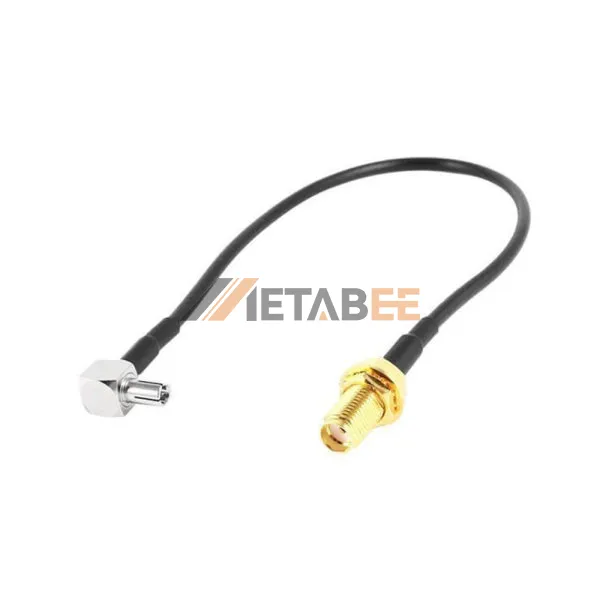

15cm 50オームRG174同軸のSMAメスからTS9オス直角RFケーブルアセンブリ
主要特徴
属性
値
検索
メーカー
レンホテック
色
黒
温度範囲
-40~+85
シールド
シールド付き
インピーダンス
50オーム
1番目のコネクタの方向
真っ直ぐ
最初の連絡先の性別
女性
2番目の連絡先の性別
男
2 番目のコネクタの方向
直角
変換スタイル
SMAからTS9まで
1番目のコネクタ
SMAジャック
2番目のコネクタ
TS9プラグ
説明
- Simple Construction, Good Stability and Cost-Effective
- Good resistance to electromagnetic interference
- Has excellent electrical and mechanical properties
- Strong adaptability to the environment
- Also perform very well over short distances such as home installations
Introduction to RF Cable
RF cable, also known as radio frequency cable, is a type of coaxial cable that is used to transmit radio frequency signals.RF cable is characterized by its ability to transmit high-frequency signals with minimal signal loss and interference.
It is constructed with a center conductor, an insulating layer, a braided or foil shield, and an outer jacket. The different components of the cable are designed to provide maximum signal integrity and protect the signal from external interference.
RF Cable Assemblies
RF Cable Assemblies Series
RF cables are cables used to transmit radio frequency signals. These signals can be used for various purposes, such as transmitting audio and video signals or communicating data transmission.
RF Cable Assembly Suitable Cable
For example, if the assembly will be used in a high-power RF application, a cable with low loss and high power handling capabilities will be required. In this case, a cable made from materials such as copper or silver-plated copper may be suitable.
- Radio communication systems
- Aerospace industry for accurate communication equipments
- Military and space application
- Ships and navy communication systems
- Satellite communications
- RF equipment in medicine and healthcare
