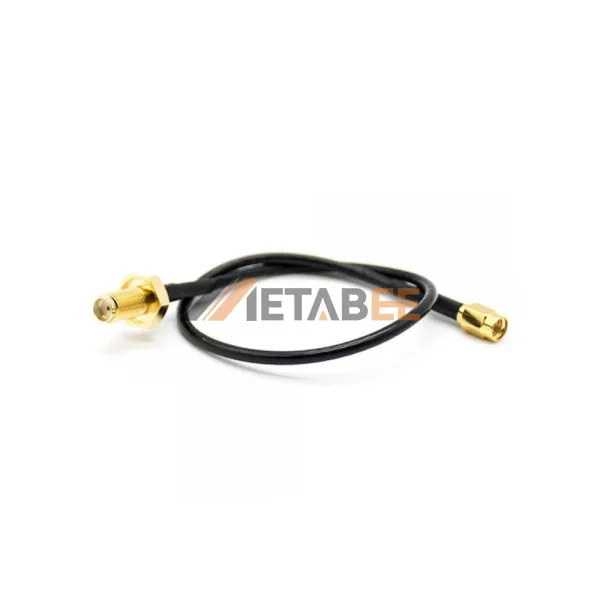

Name: 20cm 50Ohm RG174 ケーブル付き SMA オス - SMA メス バルクヘッド ケーブル アセンブリ
Brand: Metabee
SKU: ID20221200274
Price: 660.00 JPY
Availability: InStock
Rating: 4 (46 reviews)

説明

Simple Construction, Good Stability and Cost-Effective
Good resistance to electromagnetic interference
Has excellent electrical and mechanical properties
Strong adaptability to the environment
Also perform very well over short distances such as home installations

Introduction to RF Cable

RF cable, also known as radio frequency cable, is a type of coaxial cable that is used to transmit radio frequency signals.RF cable is characterized by its ability to transmit high-frequency signals with minimal signal loss and interference.

It is constructed with a center conductor, an insulating layer, a braided or foil shield, and an outer jacket. The different components of the cable are designed to provide maximum signal integrity and protect the signal from external interference.

RF Cable Assemblies

RF Cable Assemblies Series

RF cables are cables used to transmit radio frequency signals. These signals can be used for various purposes, such as transmitting audio and video signals or communicating data transmission.

RF Cable Assembly Suitable Cable

For example, if the assembly will be used in a high-power RF application, a cable with low loss and high power handling capabilities will be required. In this case, a cable made from materials such as copper or silver-plated copper may be suitable.

Radio communication systems
Aerospace industry for accurate communication equipments
Military and space application
Ships and navy communication systems
Satellite communications
RF equipment in medicine and healthcare
