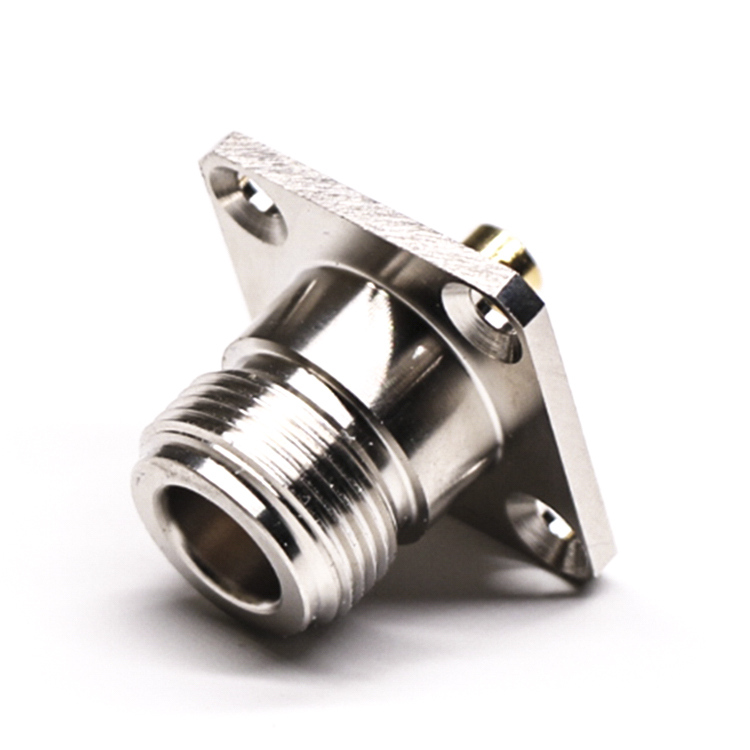

ストレート 4 穴フランジ N タイプジャックはんだタイプ RG402 ケーブルパネルマウント 50ohm

Name: ストレート 4 穴フランジ N タイプジャックはんだタイプ RG402 ケーブルパネルマウント 50ohm
Brand: Metabee
SKU: ID20220500126
Price: 836.00 JPY
Availability: InStock
Rating: 4 (10 reviews)

SKU: ID20220500126

MPN: RHT-614-0228

主要特徴

製品設計は合理的かつコンパクトで、設置スペースを削減できます
ねじ接続により、振動環境下での耐久性と安定性が保証されます
中型サイズ、軍事、産業、家庭用電子機器で使用されます
本体: 真鍮またはステンレス鋼

データシート & リソース

id20220500126_rht-614-0228

在庫あり

数量

単価

¥ 836.00

小計

¥ 836.00

数量

単価

小計

¥836

¥ 836.00

200+

¥751

¥ 150200.00

1000+

¥639

¥ 639000.00

2000+

¥512

¥ 1024000.00

説明

The product design is reasonable and compact to reduce the installation space
The threaded connection ensures durability and stability in the vibration environment
Medium size, used in military, industrial, and consumer electronics
Body: Brass or Stainless Steel

Unique Design of N-type Connector

The N-type connectors feature a threaded coupling mechanism with a helical coupling mechanism to provide a robust and reliable connection. These connectors are used in all systems where superior RF and mechanical performance is critical. Connector styles are available for flexible, uniform, semi-rigid, and corrugated cable types. The series uses crimp and clamp cable termination processes.
The N type connectors are designed to meet the need for consistent performance of rugged, weatherproof, mid-size RF connectors, including models supporting up to 18 GHz. N type connectors are available in 50 Ohm and 75 Ohm impedances

Product Benefits

Broad line of military, industrial and commercial grade products available;

Excellent RF performance from DC to 11 GHz, and DC to 18 GHz on extended-range designs;

Threaded coupling mechanism ideal for vibration resistance;

Accommodates a wide range of coaxial cables including low-loss types.

Features and Applications

N coaxial screw-in connectors offer a high degree of weather protection and excellent intermodulation.

Their mechanical stability and weather resistance make N connectors ideal for outdoor applications, such as mobile antennas.

Connection Method and Material

N-type male connectors use shield/contact crimp/non-solder contact as the connection method.

The N-type male coaxial connector has a PTFE dielectric type. The N-type coaxial connector has a brass body with tri-metal plating. This N-type male coaxial RF connector is RoHS compliant.

Antennas
Base Stations
Instrumentation
Satellite Systems
WLAN
Radar Systems
Broadcast
Surge Protection
