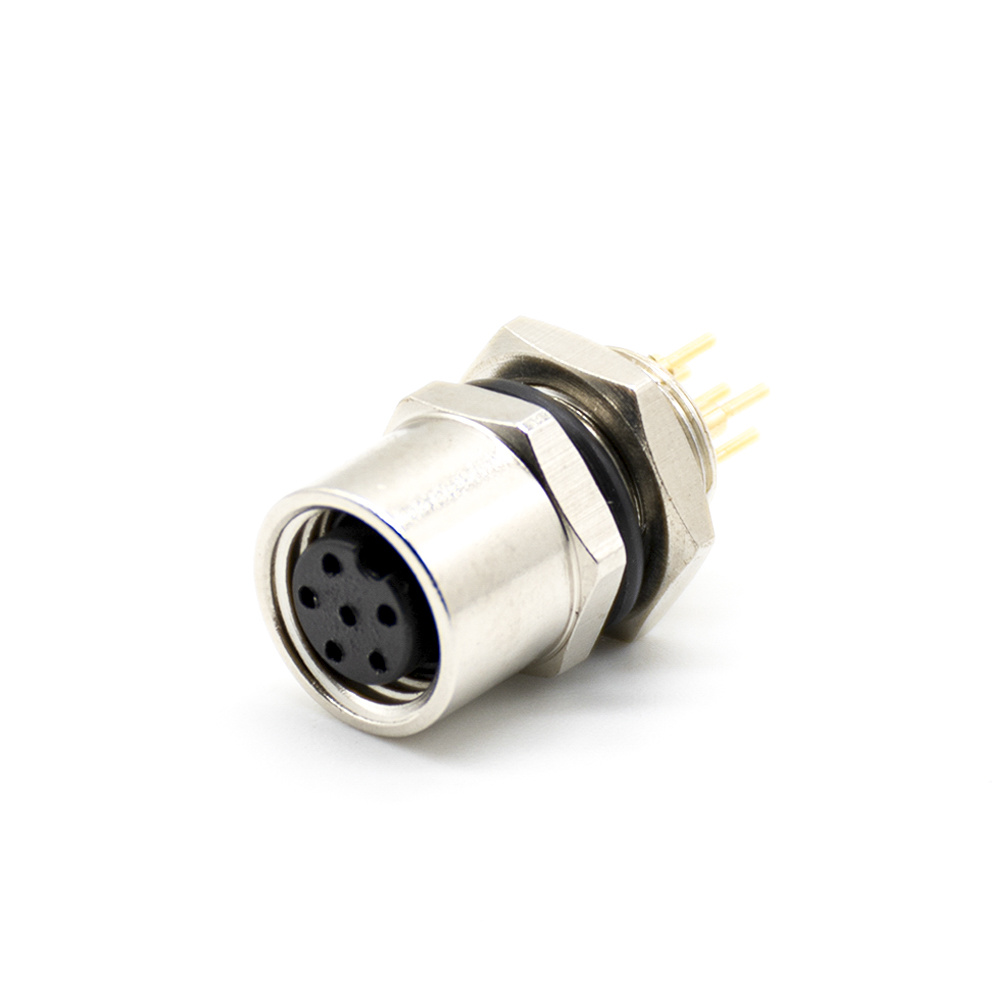

M8 암 패널 장착 소켓 6 위치 A 코드 비차폐 직선 PCB 솔더
핵심 특징
데이터 시트 및 리소스
05_rht-634-3233_2
재고 있음
수량
1
단가
₩ 7030.00
총액
₩ 7030.00
₩ 7030.00
속성
값
검색
제조업체
렌호텍
콘택트 렌즈
6핀
온도 범위
-20°C ~ + 85°C
정위
똑바로
커넥터 유형
소켓
체결방식
스레드
장착 기능
Bulkhead - Rear Side Nut
마무리에 문의
금
연락 종료
솔더
정격전류
4A
장착 유형
패널 실장
본체 재질
구리 합금
접촉 재료
구리 합금
정격전압
60V
보호 등급
IP67
쉘 마감
아연 도금
차폐
비차폐
열쇠
A
단열재
PA66
쉘 크기
M5
연락 유형
암핀
시리즈
M8 Panel Receptacles
설명
- Reliable, robust, and versatile connectivity solutions for industrial automation applications
- Environmental protection up to the IP67 standard
- Compact and lightweight plastic or metal shell connectors
- Available as field-installable connectors, receptacles, or with overmolded cables
- All connectors are available with gold plated contacts for higher conductivity
- Alternative mount arrangements for solder cup or PCB
Metabee M8 Connector System
Metabee's M8 Connector System provides a solution for machine industrial automation and control applications that can securely and reliably ensure communication in industrial environments. The M8 Connector System can also find applications outside of its traditional industry. One of its major advantages is the time savings in installing wiring systems and maintenance, which reduces setup time and the need for electricians or technicians.
Our M8 connector system offers a complete solution that includes connectors, IO modules, and cable assemblies.
A Wide Range of M8 Connectors is Available
For rewiring in the field, a range of M8 connectors are available, including 3-, 4-, 5-, and 8-position male and female versions and Y-connectors. Other styles are available upon request, including panel mount connectors and alternative mounting arrangements for double-ended cable assemblies.
M8 Connector Pin Arrangement
Metabee M8 Circular Connectors Overview
Metabee solutions include a wide range of connectors, such as sockets, cable assemblies and IO boxes, and provide users with interfaces to support higher bandwidth requirements up to 10Gb/s.
- Sensors
- I/O box/controllers and directional control valves
- Indicators for machinery, equipment
- LED controllers
- DC/DC converters
- Central electric unit relay boards
- Noise analyzers
- Wireless microphones
- Bar code reader interfaces
- Directional control valves
