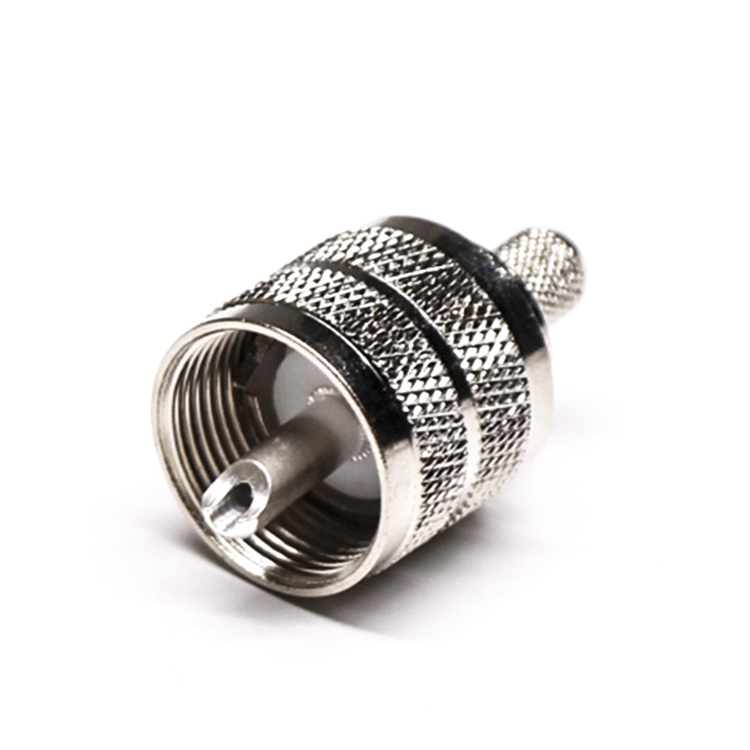

Name: 직선형 UHF 수형 압착 케이블 유형
Brand: Metabee
SKU: ID20220500790
Price: 10110.00 KRW
Availability: InStock
Rating: 4 (30 reviews)

설명

The threaded coupling mechanism is easy to assembly with high durability
Can be Customized for unique material or performance requirements
Crimp termination type provides a lower-cost method of installation
Large-size threaded couplings are a robust design
Low specification requirements and low cost

What is the UHF Connector?

Originally intended for use as a video connector in radar applications, the UHF coaxial connector was developed as a general-purpose unit for use in low-frequency systems from 0.6 - 300 MHz. Invented in the 1930s for use in the radio industry, UHF is an acronym for Ultra High Frequency because 300 MHz was considered high frequency at the time. They can be used when impedance matching is not required.

UHF connectors use threaded coupling. UHF connectors are economical and widely used because of their ease of assembly. The UHF solderable screw-in termination feature does not require a special crimping tool.

View of UHF Connector

Can be Customized for unique material or performance requirements

The connector design was invented in the 1930s for use in the radio industry, and is a shielded form of the "banana plug". It is a widely used standard connector for HF transmission lines on full-sized radio equipment.

Large size threaded couplings are a robust design

The Ultra High-Frequency (UHF) connector is a threaded coaxial connector that was developed in the 1930s by engineers at Amphenol. The UHF connector has individual male and female radio frequency connectors that form a mated connection by thread coupling.

Crimp termination type provides a lower cost method of installation

This is a cost-effective, robust radio-frequency connector that is suitable for general-purpose use.

Antennas
Military
Distributed Antenna Systems (DAS)
Public Address Systems
Low-Frequency Applications

데이터 시트 및 리소스

id20220500790_rht-630-0122

배송 가이드

배송	배송 기간	Metabee는 일요일을 제외하고 매일 오후 5시경에 주문하신 상품을 발송합니다. 발송 후 예상 배송 시간은 고객님이 선택하신 배송업체에 따라 달라집니다. 특송: 3~7일. 일반 우편: 7~20일.
	배송비	주문 배송비는 장바구니에서 확인할 수 있습니다.
	배송 옵션	저희는 특송 및 일반 배송 서비스를 제공합니다.
	물류 추적	주문 발송 후 이메일로 운송장 번호를 보내드리며, 「내 주문 추적」 기능으로 물류를 조회할 수 있습니다.
반품/보증	반품	반품/교환은 일반적으로 발송 후 30일 내에 완료해야 하며, 고객 서비스에 연락하여 반품 승인을 받으세요. 상품은 사용하지 않은 상태여야 하며 원래 포장을 유지해야 합니다. 배송비는 고객이 부담합니다.
	보증	모든 Metabee 구매 상품은 30일 무조건 반품 정책과 1년 Metabee 보증(제조 결함 대상)을 받습니다.
		본 보증은 고객의 잘못된 조립, 설명서 미준수, 제품 수정, 부주의 또는 부적절한 사용으로 인한 결함 상품에는 적용되지 않습니다.
주문	구매 방법	Metabee는 온라인 주문을 지원합니다.
		장바구니에 추가 > 결제 > 주문 제출 > 결제 완료 > 배송
	결제	PayPal, 신용카드(Visa, MasterCard, 아메리칸 익스프레스), 은행 송금.

리뷰(30)

4 /5

모든 리뷰는 인증된 구매자로부터 나옵니다

43%

50%

C****t

Using to build my own patch cables for amateur ham radio. Easy enough to crimp. Comes with shrink tubing.

C****t

Using to build my own patch cables for amateur ham radio. Easy enough to crimp. Comes with shrink tubing.

C****t

Bought this to replace a connector on my RG58 antenna cable (needed to remove 3ft of length). The connector itself has a nice build quality. It's sturdy and well made. My issue was with the installation of the connector. The barrel seemed too small for me to feed through my coax cable for termination. I had to hack my cable, literally with a pocket knife, to trim the diameter of the insulation just enough to fit.

C****t

C****r

I always need replacement ends. They should work fine.

C****r

I always need replacement ends. They should work fine.

D****.

The inclusion of even simple instructions would have saved me some time and effort. Not difficult to install. Overall quality is good.

D****.

The inclusion of even simple instructions would have saved me some time and effort. Not difficult to install. Overall quality is good.

Very good tolerances. I've had issues with other crimp connectors, but this set went onto the cable very cleanly.

J****s

Robust design with quality materials. Putting cables together was never easier thanks to a great product design and durable materials with very tight tolerances in assembly.

J****s

Robust design with quality materials. Putting cables together was never easier thanks to a great product design and durable materials with very tight tolerances in assembly.

J****g

The connectors and adaptors arrived within 24 hours. Quality of these components was as I expected. Very satisfied!! Would I buy from same again? You Bet!!

J****g

The connectors and adaptors arrived within 24 hours. Quality of these components was as I expected. Very satisfied!! Would I buy from same again? You Bet!!

J****r

Needed for our CB antenna this product worked well and was fast to receive

J****r

Needed for our CB antenna this product worked well and was fast to receive

J****.

These seem like good quality connectors. Good price too considering they include the smaller coax adapters.

J****.

These seem like good quality connectors. Good price too considering they include the smaller coax adapters.

J****m

They are good, did not melt when soldering like the el'cheapos

J****m

They are good, did not melt when soldering like the el'cheapos

J****a

Very easy to install love that came with heat Shrink since like to use it on all my connections

J****a

Very easy to install love that came with heat Shrink since like to use it on all my connections

M****k

I have not tried these for 8X and looking at them it will be a challenge getting them to work with 8X. These, however, work great on LMR240 which is what I wanted to use them for. The included heatshrink is glue type which is what you need for that extra strain relief. Other connectors I have tried did not have glue type heatshrink, or it was too short.

M****k

R****L

These connectors are exactly what they claim to be - good quality, crimp-on, PL-259 connectors for RG8X coaxial cable. They are easy to install (with the proper tools) and work well once installed. To properly install these connectors you will need a crimp tool with a die correctly sized (0.255") for RG8X cable, to crimp the compression band around the cable and connector, and a soldering iron to solder the center conductor of the coaxial cable to the center pin of the connector. A heat gun to shrink the included heat shrink tubing is also helpful. With these tools and a little patience, you can consistently assemble professional quality cables with these connectors.

R****L

R****B

These seem fine for making jumper cables or indoor connections. However they are not as heavy duty as other connectors so I would not recommend these for outdoor use. They are ok at best.

R****B

These seem fine for making jumper cables or indoor connections. However they are not as heavy duty as other connectors so I would not recommend these for outdoor use. They are ok at best.

R****T

These are supplied with a strong, stiff heat shrink strain relief that is really nice. The only thing I didn't like was the lack of instructions with cable stripping dimensions and the correct size crimp dies to use. I bought a second set of these after using the first, just to have them on hand for future use. I definitely prefer the crimp method now over soldering the shield. You still have to solder the center conductor but that's easy.

R****T
