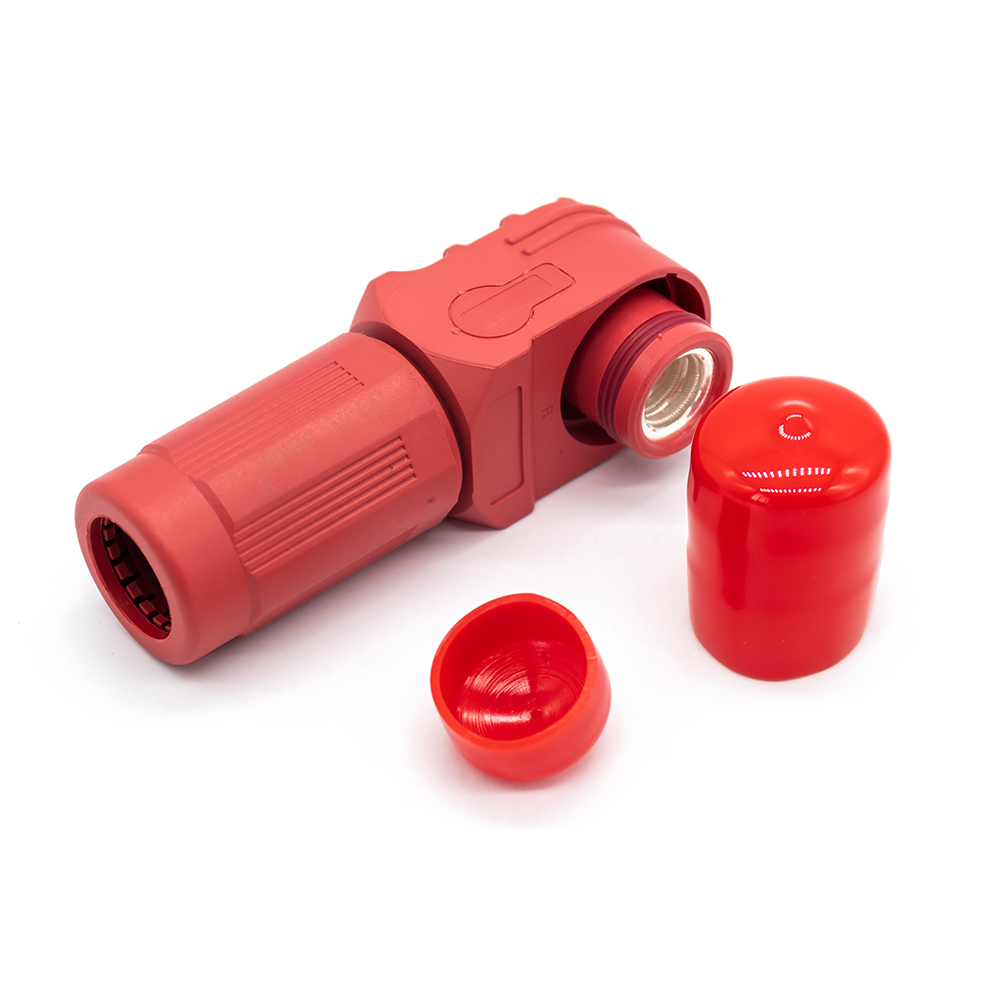

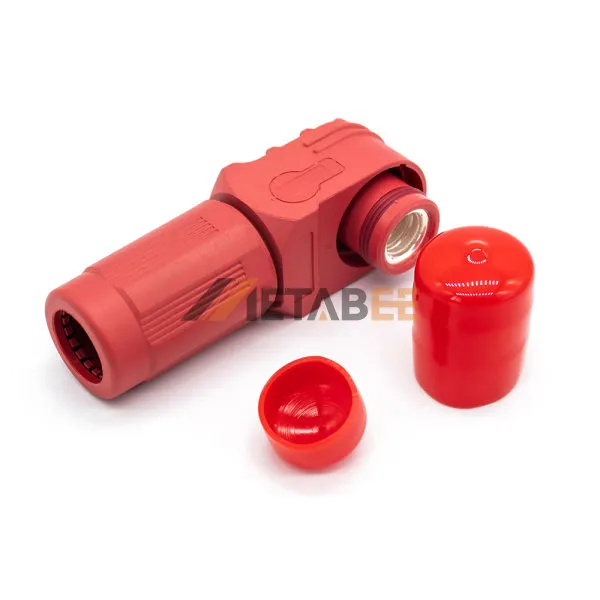

12-мм разъем для хранения энергии, 250 А, кабельная вилка, прямоугольный, 70 мм², неэкранированный кабель, красный
Ключевые характеристики
Product Specifications
Тип разъема：
ЗатыкатьРозеткаЦвет：
АпельсинКрасныйЧерный Техническое описание и ресурсы
plug_drawing_fcc12xx-f1xr-nwn-4010-a_2
socket_drawing_fcc12xx-m1xl-nwf-4010-a
В наличии
Кол-во.
1
**Цена за ед.**
$ 25.37
Общая цена
$ 25.37
$ 25.37
Кол-во.
**Цена за ед.**
Общая цена
1+
$25.37
$ 25.37
50+
$20.30
$ 1015.00
100+
$18.27
$ 1827.00
200+
$17.25
$ 3450.00
Характеристики
Атрибут
Значение
Поиск
Производитель
Гибкие катушки
Цвет
Красный
Ориентация
Прямоугольный
Тип разъема
Затыкать
Контакт Готово
Серебро
Прекращение контакта
Обжим
Номинальный ток
250A
Тип монтажа
Тип кабеля
Контактный материал
T2
Номинальное напряжение
1000V
Размер контакта
12mm
Protection Rating
IP54
Рейтинг воспламеняемости
UL94 В-0
Экранирование
Неэкранированный
Количество позиций
1
Описание
- !! This product is not compatible with other brand products. It would be best if you bought the same key plug and socket of this brand to use it properly.
- High current rating, high ampacity in a smaller package.
- High reliability; meets or exceeds the electrical performance of bolt-on compression lugs.
- Easy field install - crimp with standard colour-coded dies. No torque wrenches are required.
- Flexcoils Finger technology boosts the ampacity by 50% or more compared to mil-spec contacts. Flexcoils contacts provide the advantages of low insertion force and high cycle durability.
- RoHS compliant
Connector for Energy Storage Systems
Energy storage connectors are mainly used to connect battery modules of energy storage systems in series, making it safer for workers to install energy storage systems (ESS).
Our Energy Storage Connectors meet customers’ critical technical indicators such as plugging force, insulation resistance, dielectric strength, and temperature rise through professional CAE simulation design. They are widely used in energy storage, new vehicles, and other industries.
ESS designers can use the connectors in tandem or separately based on the specific application requirements. The battery storage connectors are installed on the front of battery modules, while the connectors are installed on the back.
The energy storage connectors rotate 360 degrees, so they can accommodate the best angle to arrange heavy cabling. They have mechanical coding that protects against polarity reversal and prevents incorrect mating.
The battery storage connectors have a drawer-style, slide-in connection, eliminating the need for field wiring. The modular connection system can be scaled to meet application requirements, removing the constraints of cabling and allowing higher power distribution.
Suitable for Installation Environment, Three Colors Available
In order to be more adaptable to more installation scenarios, Metabee energy storage connector plugs are generally curved, we can also make straight plugs according to your needs.
The connectors are available in orange, red and black colors.
Generally, orange or red plugs are used for the positive terminal and black plugs for the negative terminal.
Custom Wire Harnesses
In addition to connectors, we can customize various energy storage connector harnesses to suit your needs.
Metabee energy storage connector harnesses can be adapted to 60A~350A rated current and 10mm²~95mm².
Three Types of Terminals are Available
The receptacles of Metabee energy storage connectors are available with three types of terminals: copper plate thread, female thread, and male thread.
You can choose the socket with the correct terminal block according to your specific installation environment.
Unique Contact Piece Design
Metabee connectors use the Flexcoils finger technology, small size, high current carrying capacity, compared to the same size of the terminal, can have more current.
Anti-mistake Touch & 360°Rotation & Slide-in Connection
When the plug is inserted into the socket, you will hear a 'click'. Press the button to pull out the plug.
How to Order Based on Mfr Part
- EV / HEV
- Rail Mass Transit
- BMS / Energy Storage
- Process Control / Automation
- Medical Industry
- Heavy Equipment
Техническое описание и ресурсы
plug_drawing_fcc12xx-f1xr-nwn-4010-a_2
socket_drawing_fcc12xx-m1xl-nwf-4010-a
Сертификаты
31745-ROHS Test Report - Energy storage connector
31745-ROHS Test Report - Energy storage connector
31745-ROHS Certificate - Energy storage connector
31745-ROHS Certificate - Energy storage connector
AGC07686230401-008 ROHS Test Report Battery Storage Connector
AGC07686230401-008 ROHS Test Report Battery Storage Connector
AGC07686230401-C008 ROHS Certificate Battery Storage Connector
AGC07686230401-C008 ROHS Certificate Battery Storage Connector
M.2022.206.C77197 CE Certificate Energy Storage Connectors Cable
M.2022.206.C77197 CE Certificate Energy Storage Connectors Cable
