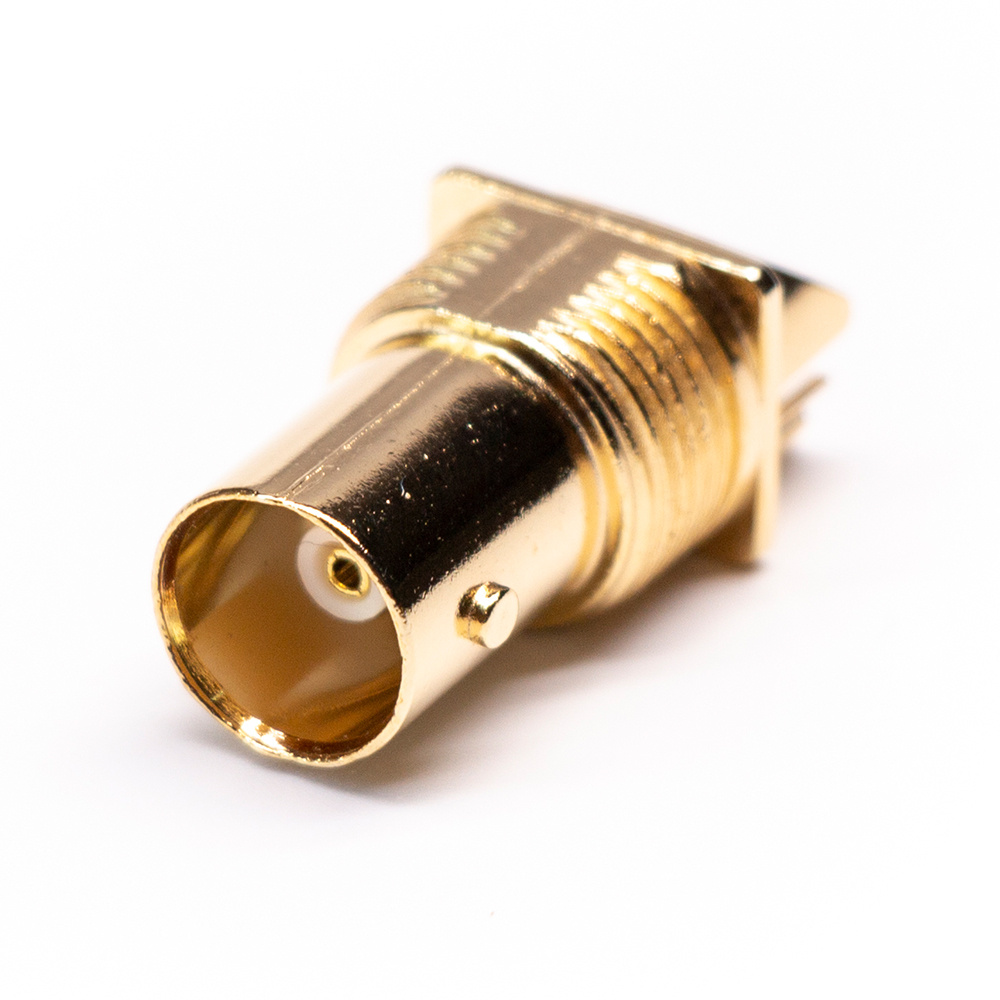

Coaxial Connector BNC Straight Jack Edge Mount 75 Ohm Glod Plated
主要特点
数据手册与资源
id20220500059_renhotec-610-0058
有现货
数量
1
单价
₺ 202.51
总价
₺ 202.51
₺ 202.51
规格
属性
值
搜索
制造商
伦霍特克
方向
直的
连接器类型
杰克
紧固类型
刺刀
安装特点
Edge Mount
接触完成
金子
接触终止
焊接
安装类型
面板安装
接触材料
铜合金
外壳表面处理
镀金
职位数量
1
绝缘材料
PTFE
触点类型
母针
描述
- Bayonet coupling mechanism provides positive, fast fit and separation
- 50 and 75 ohm impedance designs allow customers to match impedance to system requirements
- Available for military, industrial and commercial applications
- Designed to fit many common BNC coaxial cable types
- BNC female and male configurations
About BNC connector
The BNC connector was originally designed for military applications but is now used primarily in the broadcast market. The connector has evolved to keep up with the changing industry landscape and now offers the 12G SDI performance required for 4K and Ultra HD applications. The BNC connector type designed for coaxial cable has been widely adopted and is a popular choice for existing and next-generation video technologies.
We offer a full range of BNC connector types with various female and male options. BNC connectors are small, lightweight, and reliable. The 50-ohm BNC and 75-ohm BNC connectors are available in configurations suitable for commercial and military-grade applications. A full line of printed circuit board (PBC) sockets, bulkhead receptacles, reverse polarity connectors, resistor terminals, and other accessories complement the product.
Designed to fit many common BNC coaxial cable types
BNC connectors are available in straight or right-angle versions, as well as, 4-hole flange, bulkhead, 4-hole panel, or mountless options. These BNC connector designs include clamp/solder, crimp/solder, field replaceable, solder or solder/solder attachment methods.
Bayonet coupling mechanism provides positive, fast fit and separation
BNC connector types feature a bayonet style coupling mechanism that allows for quick connect and disconnect with positive locking. Mating is achieved with just a quarter-turn of the coupling nut. With a classic, dependable design, BNC RF connectors are suited to accommodate a large variety of RG and industry-standard coaxial cables, in a variety of termination styles.
BNC connectors are constructed in male or female gender in standard polarity or reverse polarity threads, with 50 Ohm impedance.
- Antennas
- Broadcast (75 Ω)
- Telecommunications
- Automotive
- Computers/LANs
- Medical Equipment
- Satcom
- Base Stations
- Cable Modems
- Instrumentation
- Military/Aerospace
