METABEE NMEA 2000 网络入门套件，适用于 Lowrance、Simrad 和 Garmin，海洋级主干电缆、分支电缆、三通和终端器，蓝色

NMEA2000 Termination Resistors NMEA2000 M12 or 7/8 inch connector termination resistors, typically a 120 ohm resistor is molded integrally inside the connector and installed or applied to the end of the NMEA2000 keel mains. It is used to absorb reflected waves on the network, effectively enhancing the signal strength.

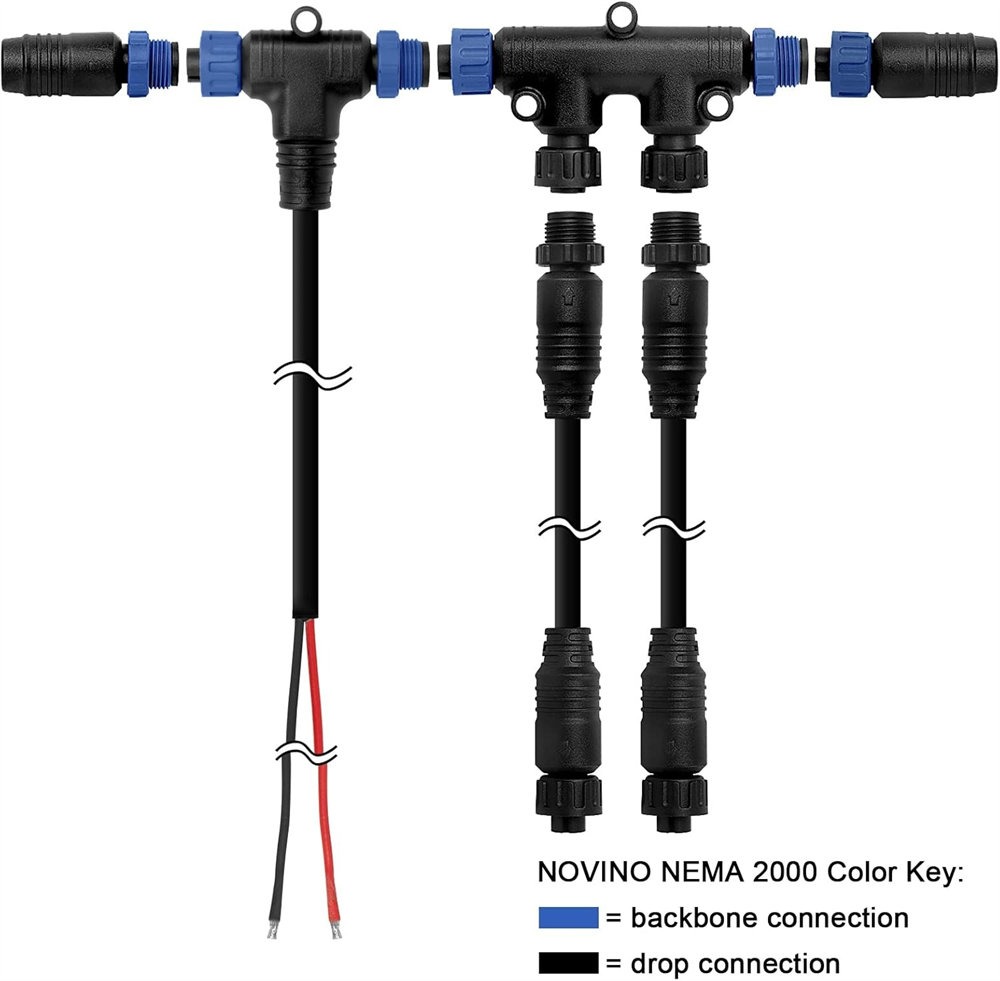

T-power connectors are used to install connections to the network backbone, but are intended primarily to provide "bus power," not to connect electronic devices. t-power connectors uniquely provide two power inputs, thus providing dual power supplies to devices.

Single-ended splice sets for rugged, IP687 rated water resistant splices for backbone or branch lines that continue to maintain line integrity even in harsh marine environments.
Different cable lengths to suit installation requirements

Field wireable connectors allow for open cable connections at the job site, and rugged housing materials are designed to withstand harsh marine environments

Double-ended splice sets are designed and manufactured for use on trunk lines or branch lines with a strong connection and simple, time-saving installation in mind. The connectors have a keyway anti-drop design to ensure error-free connections and are waterproof to allow operation even when submerged in the bilge.
