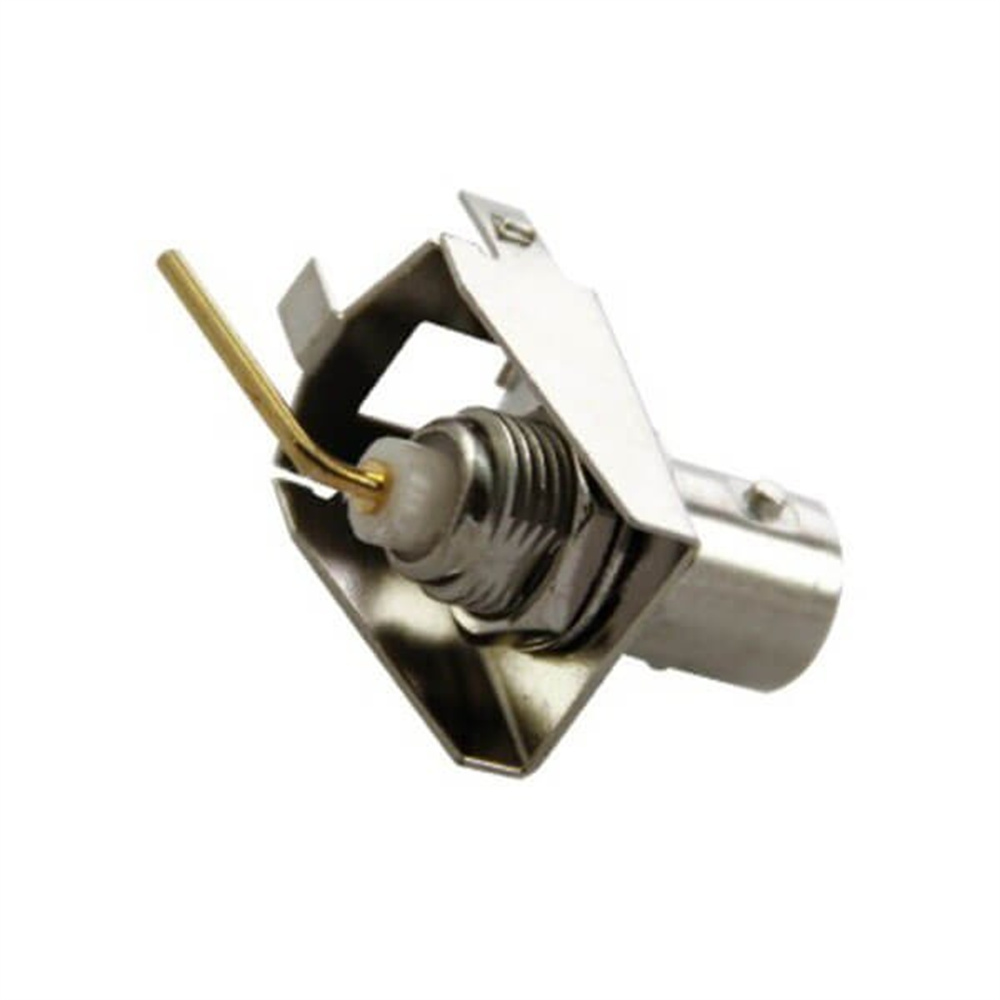

Coaxial Connector BNC Right Angle Jack Female Pin Panel Mount Through Hole
Key Features
Datasheet & Resources
id20220500063_renhotec-610-0042
Specifications
Attribute
Value
Search
Manufacturer
Renhotec
Orientation
Right Angled
Connector Type
Jack
Fastening Type
Bayonet
Mounting Feature
Through Hole
Contact Finish
Gold
Contact Termination
Through Hole
Mounting Type
Panel Mount
Contact Material
Copper Alloy
Shell Finish
Nickel Plated
Number of Positions
1
Insulation Material
Teflon white
Contact Type
Female Pin
Description
- Bayonet coupling mechanism provides positive, fast fit and separation
- 50 and 75 ohm impedance designs allow customers to match impedance to system requirements
- Available for military, industrial and commercial applications
- Designed to fit many common BNC coaxial cable types
- BNC female and male configurations
About BNC connector
The BNC connector was originally designed for military applications but is now used primarily in the broadcast market. The connector has evolved to keep up with the changing industry landscape and now offers the 12G SDI performance required for 4K and Ultra HD applications. The BNC connector type designed for coaxial cable has been widely adopted and is a popular choice for existing and next-generation video technologies.
We offer a full range of BNC connector types with various female and male options. BNC connectors are small, lightweight, and reliable. The 50-ohm BNC and 75-ohm BNC connectors are available in configurations suitable for commercial and military-grade applications. A full line of printed circuit board (PBC) sockets, bulkhead receptacles, reverse polarity connectors, resistor terminals, and other accessories complement the product.
Designed to fit many common BNC coaxial cable types
BNC connectors are available in straight or right-angle versions, as well as, 4-hole flange, bulkhead, 4-hole panel, or mountless options. These BNC connector designs include clamp/solder, crimp/solder, field replaceable, solder or solder/solder attachment methods.
Bayonet coupling mechanism provides positive, fast fit and separation
BNC connector types feature a bayonet style coupling mechanism that allows for quick connect and disconnect with positive locking. Mating is achieved with just a quarter-turn of the coupling nut. With a classic, dependable design, BNC RF connectors are suited to accommodate a large variety of RG and industry-standard coaxial cables, in a variety of termination styles.
BNC connectors are constructed in male or female gender in standard polarity or reverse polarity threads, with 50 Ohm impedance.
- Antennas
- Broadcast (111 Ω)
- Telecommunications
- Automotive
- Computers/LANs
- Medical Equipment
- Satcom
- Base Stations
- Cable Modems
- Instrumentation
- Military/Aerospace
