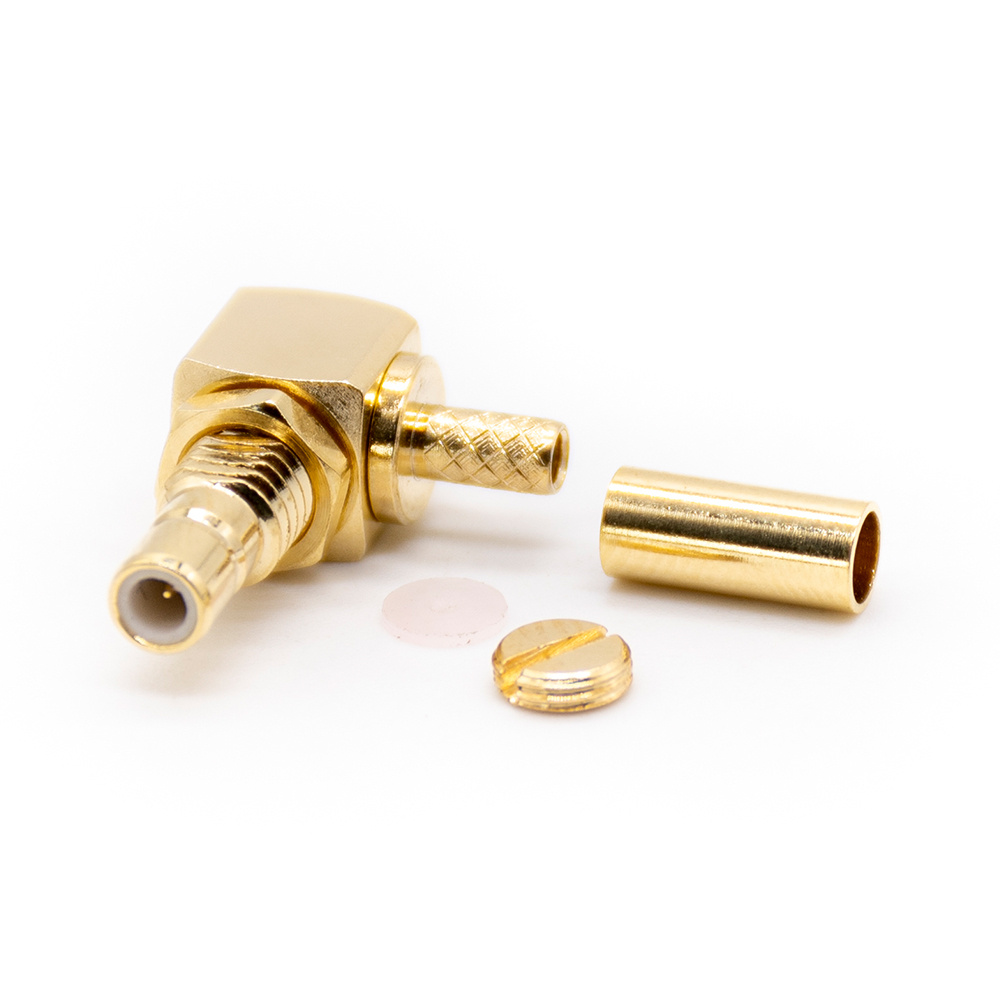

Coaxial Connector SMB Right Angle Jack Male Pin Crimp Cable Type 50 Ohm
Key Features
In-Stock
Qty.
1
Unit Price
₺ 84.94
Ext. Price
₺ 84.94
₺ 84.94
Qty.
Unit Price
Ext. Price
1+
₺84.94
₺ 84.94
200+
₺76.99
₺ 15398.00
1000+
₺65.69
₺ 65690.00
2000+
₺51.89
₺ 103780.00
Specifications
Attribute
Value
Search
Manufacturer
Renhotec
Orientation
Right Angled
Connector Type
Jack
Fastening Type
Snap on
Contact Finish
Gold
Contact Termination
Crimp
Mounting Type
Cable Mount
Contact Material
Brass
Shell Finish
Gold Plated
Number of Positions
1
Insulation Material
PTFE
Contact Type
Male Pin
Shield Termination
Crimp
Description
- Various plating options in nickel, gold and tin-lead
- Quick connect/disconnect snap-on mating reduces installation time
- SMB PCB slide-in plugs and jacks allow board-to-board installation with low insertion force
About the SMB Connector
The SMB (Subminiature B version) connector is a coaxial RF connector developed in the 1960s. SMB connectors are smaller than SMA connectors. They feature snap-on coupling and offer 50 Ω or 75 Ω impedance. They provide excellent electrical performance from DC to 4 GHz.
SMB connectors are available in straight or right-angle versions, as well as bulkhead, 2-hole panel, 4-hole panel, or no mounting options. These SMB connector designs include clamp/solder, crimp/solder, or solder connection methods.
SMB Series Connector
SMB subminiature coaxial connectors are suitable for a variety of applications up to 4 GHz. The snap-lock mechanism provides a fast and reliable connection for high packing density applications. These versatile connectors can be used for internal devices and cable assemblies.
Fast and reliable connection
The SMB connector is used in applications where a quick mating sub-miniature RF connector is required for RF frequencies up to frequencies of a few GHz. The SMB connector derives its name as it is termed a Sub-Miniature version B connector.
SMB have a gold-plated center and outer contact and are suited to applications in all industries. In common with the similar screw-coupled SMC series, the center contacts of SMB are reversed when compared with the larger SMA, with the plug having the female contact.
- Base Stations
- Antennas
- Radio Boards
- PC/LAN
- Global Positioning System (GPS)
- Instrumentation
- Telecommunications
