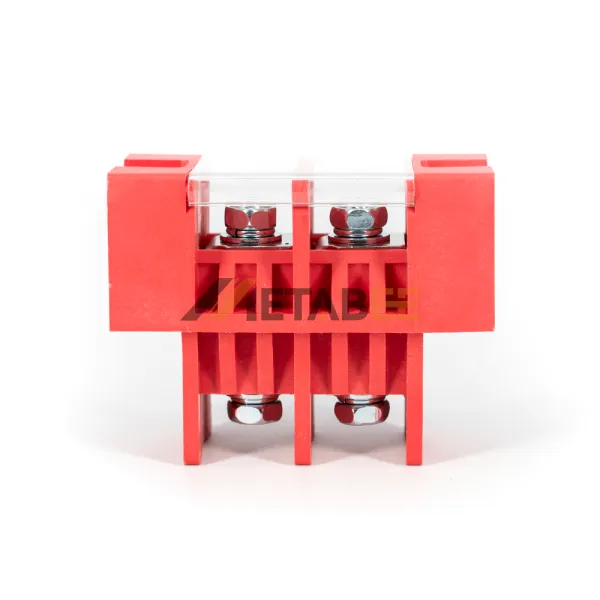

Feed Through Type Barrier Terminal Block for UPS Battery 2 Circuts Pitch 21mm Red
Key Features
Datasheet & Resources
pg38-11-21.0-02p-en_1
In-Stock
Qty.
1
Unit Price
$ 3.36
Ext. Price
$ 3.36
$ 3.36
Qty.
Unit Price
Ext. Price
1+
$3.36
$ 3.36
50+
$2.80
$ 140.00
100+
$2.24
$ 224.00
200+
$2.01
$ 402.00
Specifications
Attribute
Value
Search
Manufacturer
Renhotec
Color
Red
Mounting Feature
Flange
Rated Current
100A
Rated Voltage
600V
Flammability Rating
UL94 V-0
Feature
Flange
Pitch
21mm
Number of Circuts
2
Number of Wire Entries
2
Bottom Termination
screw
Top Temination
screw
Insulation Material
PA66
Terminal Screw Material
Steel
Terminal Screw Finish
Nickel
Terminal Block Type
barrier_block
Description
- Thru-Panel
- Barrier Construction Plastic
- Finger-Safe Cover
- Qualified Brass with Nickel Plated Contact
- UL94-V0 Grade Shell
- Load stabilization
Feed Through Type Barrier Block Connector
Featuring many screw terminals, barrier terminal blocks are PCB or chassis mount connection points for connecting two or more cables without the need for plugs. They consist of screw, quick connect, solder tab, turret, wire wrap or threaded stud positions arranged in a continuous strip. Each position is fully insulated from the other positions. Blocks are differentiated by number of circuits, number of wire entries, pitch, number of rows, current and voltage ratings, wire gauge, and top or bottom termination.
Renhotec's barrier terminal blocks are designed with your industry needs in mind and are available in wide variety of customizable styles.
Wide Range of Selection
Renhotec Electronic's High-Power Barrier Terminal Blocks are available 30A - 200A @ 600V. Also available in red and black.
Safety, Remains Long Lasting
They are designed to meet UL standards for regulation and are CSA certified. Each feed-through barrier terminal block is built with sturdy, high-quality plastic and is carefully quality control tested to ensure your barrier-style terminal block functions properly and remains long-lasting.
How to Order
- Motor Controls
- Electric Heaters
- Industrial Controls
- Pumps
- Power Supplies
- Lighting
Datasheet & Resources
