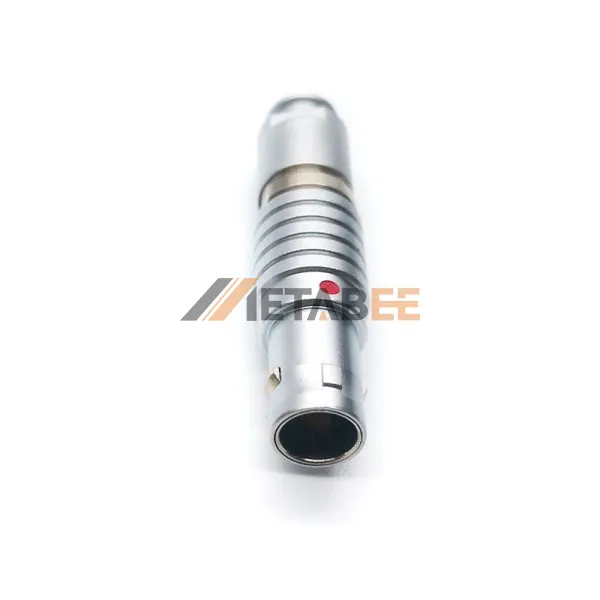

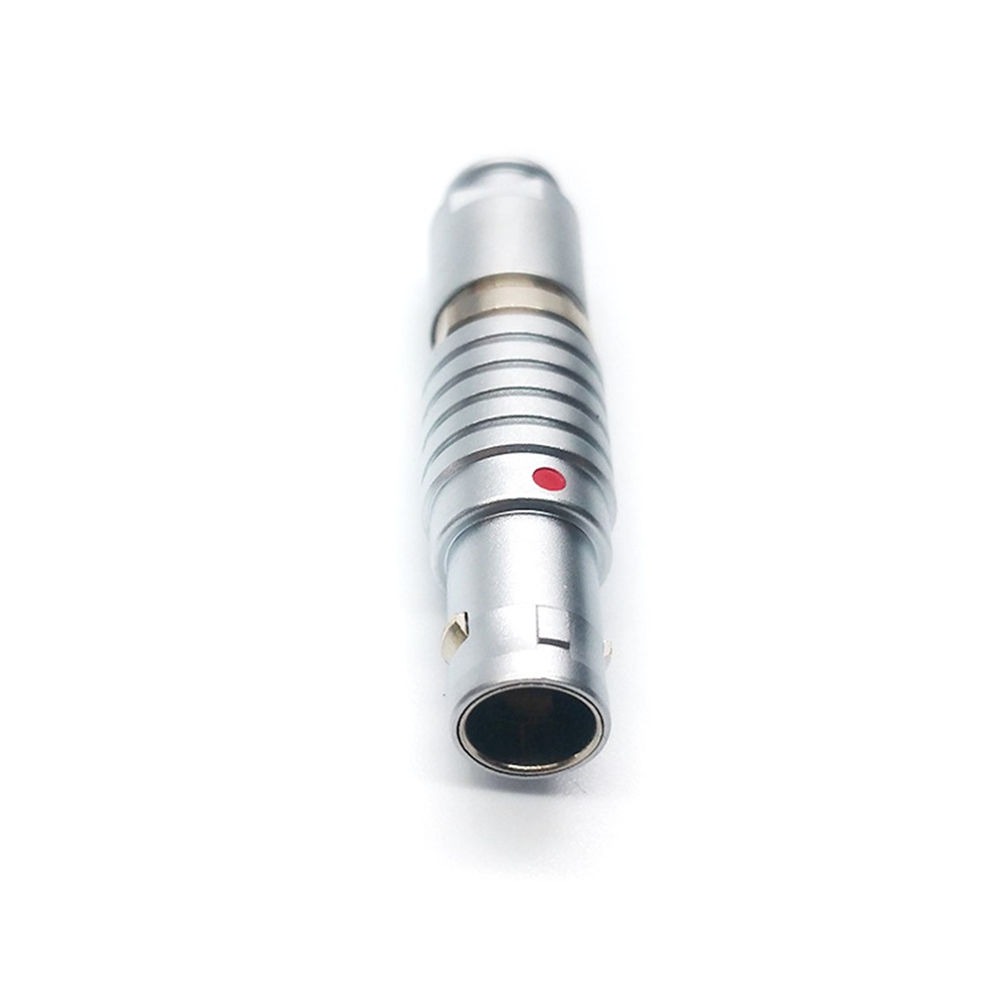

LINKET TGG.1B.305.CLAD72N B Series Push-Pull Connector with Cable Clamp, Straight Plug, 1B, 5 Male Pin, Cable Type, Solder, Collet Size 72, IP50

LINKET CE1LINKET ROHS Report
SKU: MB-1001-103-0178
MPN: TGG.1B.305.CLAD72N

Product Specifications

Number of Contacts:
2345678101416
In-Stock
Qty.
1
Unit Price
$ 16.47
Ext. Price
$ 16.47
$ 16.47
Qty.
Unit Price
Ext. Price
1+
$16.47
$ 16.47
10+
$14.82
$ 148.20
50+
$13.18
$ 659.00
200+
$11.53
$ 2306.00
Attribute
Value
Manufacturer
LINKET
Orientation
Straight
Connector Type
Push-Pull Circular Connector
Contact Termination
Solder
Rated Current
9A
Mounting Type
Cable Type
Contact Material
Copper Alloy
Contact Plating
Gold over Nickel Plated
Protection Rating
IP50
Shielding
Shielded
Shell Size
1B
Series
B Series
Contact Gender
Male Pins
Insulation resistance
≥5000MΩ
Wire Gauge
22AWG
Brand
LINKET
Number of Contacts
5
Operating Temperature
-55°C to +250°C
Mating Cycles
5000 Cycles
Shell Style
TGG
Plug or Socket
Plug
Alignment Key
G
Test Voltage (Contact-Contact)
1.25 kV rms
Test Voltage (Contact-Shell)
1.15 kV rms
Collet Size Code
72
Cable Diameter
6.2mm-7.2mm
Housing Material
Brass
Housing Plating
Chrome
Insulator material 1
PPS
