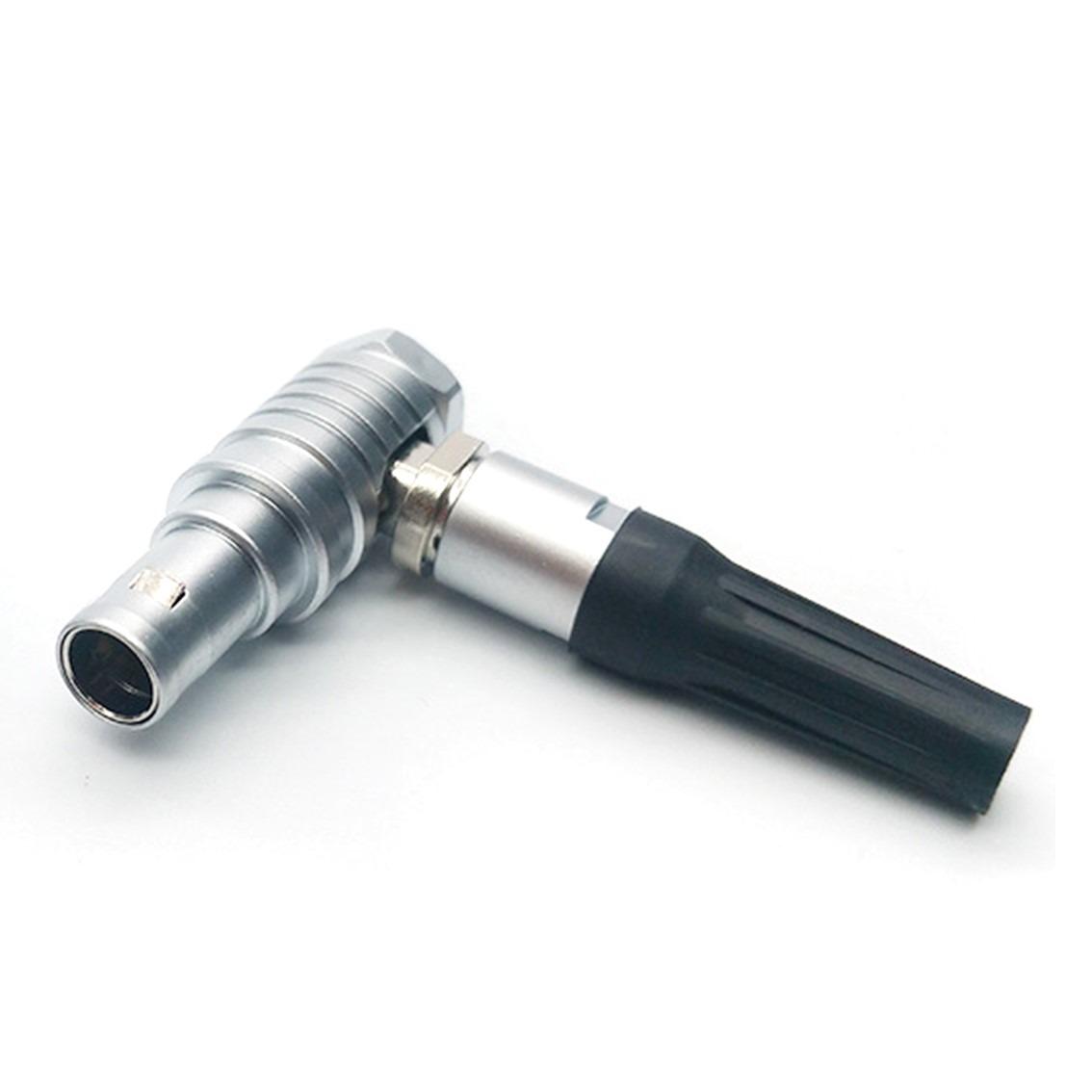

LINKET TPG.0B.303.CLAD52N B Series Push-Pull Circular Connector with Cable Clamp, Right Angle Plug, 0B, 3 Male Pin, Cable Type, Solder, Collet Size 52, IP50

LINKET CE1LINKET ROHS Report
SKU: MB-1001-102-1006
MPN: TPG.0B.303.CLAD52N

Key Features

  • Space efficient right angle plug
  • Precision 3 male pins
  • Intuitive push-pull connection interface
  • Heavy duty 5.2mm collet
  • Dust proof IP50 enclosure
  • Replacement for FPG.0B.303.CLAD52N

Product Specifications

Number of Contacts：
2345679
In-Stock
Qty.
1
Unit Price
$ 21.76
Ext. Price
$ 21.76
$ 21.76
Qty.
Unit Price
Ext. Price
1+
$21.76
$ 21.76
10+
$19.58
$ 195.80
50+
$17.41
$ 870.50
200+
$15.23
$ 3046.00
Inquiry for more quantity?
Specifications
Show Similar Products >
Attribute
Value
Search
Manufacturer
LINKET
Orientation
Right Angle
Connector Type
Push-Pull Circular Connector
Contact Termination
Solder
Rated Current
8A
Mounting Type
Cable
Contact Material
Copper Alloy
Contact Plating
Gold over Nickel Plated
Protection Rating
IP50
Shielding
Shielded
Shell Size
0B
Series
B Series
Contact Gender
Male Pins
Insulation resistance
≥5000MΩ
Wire Gauge
20AWG
Brand
LINKET
Number of Contacts
3
Operating Temperature
-55°C to +250°C
Mating Cycles
5000 Cycles
Shell Style
TPG
Plug or Socket
Plug
Alignment Key
G
Test Voltage (Contact-Contact)
1.20 kV DC
Test Voltage (Contact-Shell)
0.90 kV DC
Collet Size Code
52
Cable Diameter
4.2mm-5.2mm
Housing Material
Brass
Housing Plating
Chrome
Insulator material 1
PPS
Show Similar Products >
Description

The TPG.0B.303.CLAD52N is a heavy-duty right-angle push-pull circular connector designed for harsh commercial and industrial deployments. Its 0B aluminum/brass alloy housing includes 3 male pins featuring solder connections that resist vibration-induced signal dropout. The angled plug format optimizes space inside control panels, allowing parallel cable alignment. This model integrates a high-strength cable clamp assembly with a 5.2mm collet size to secure larger industrial-grade wiring harnesses. Rated at IP50 for dust ingress defense, it offers procurement managers and system designers a compliant, high-reliability solution for medical, testing, and telecommunication fields.

B Series Push-Pull Connectors

Experience precision and reliability with the B Series push-pull interlocking connectors. Engineered as a seamless, high-performance alternative to LEMO® B series connectors, these premium circular connectors are designed for secure, rapid mating in critical environments. Featuring an advanced self-latching mechanism, multiple keying options to prevent cross-mating, and 360-degree shielding for full EMI/RFI protection, the B Series guarantees uncompromising signal integrity. Ideal for industrial control, medical instrumentation, and broadcast equipment, these connectors provide a cost-effective, durable, and highly compatible connectivity solution tailored for your most demanding engineering projects.

Part Number Rules

Structure

Shell Sizes

Insert Configuration for 0B Series

Metabee B Series Push-Pull Connectors

Applications

The B Series connectors are highly versatile and engineered for critical applications where reliability, precision, and quick mating are non-negotiable. Key industries and uses include:

  • Medical Equipment: Patient monitoring systems, electrosurgical devices, and diagnostic imaging where secure, failsafe connections are essential.
  • Test & Measurement: Laboratory instruments, oscilloscopes, and precision sensors requiring uncompromised signal integrity and frequent connection cycles.
  • Broadcast & Audio/Video: High-definition cameras, professional audio mixing equipment, and outside broadcast (OB) vehicles needing durable, blind-mating capabilities.
  • Industrial Automation: Robotics, factory control systems, and heavy machinery that demand vibration-resistant and rugged connectivity.
  • Data & Communications: High-speed data transmission equipment and secure communication networks operating in demanding environments.
  • Automotive & Motorsport: Telemetry systems, crash test sensors, and in-vehicle diagnostics requiring lightweight yet robust connections.
