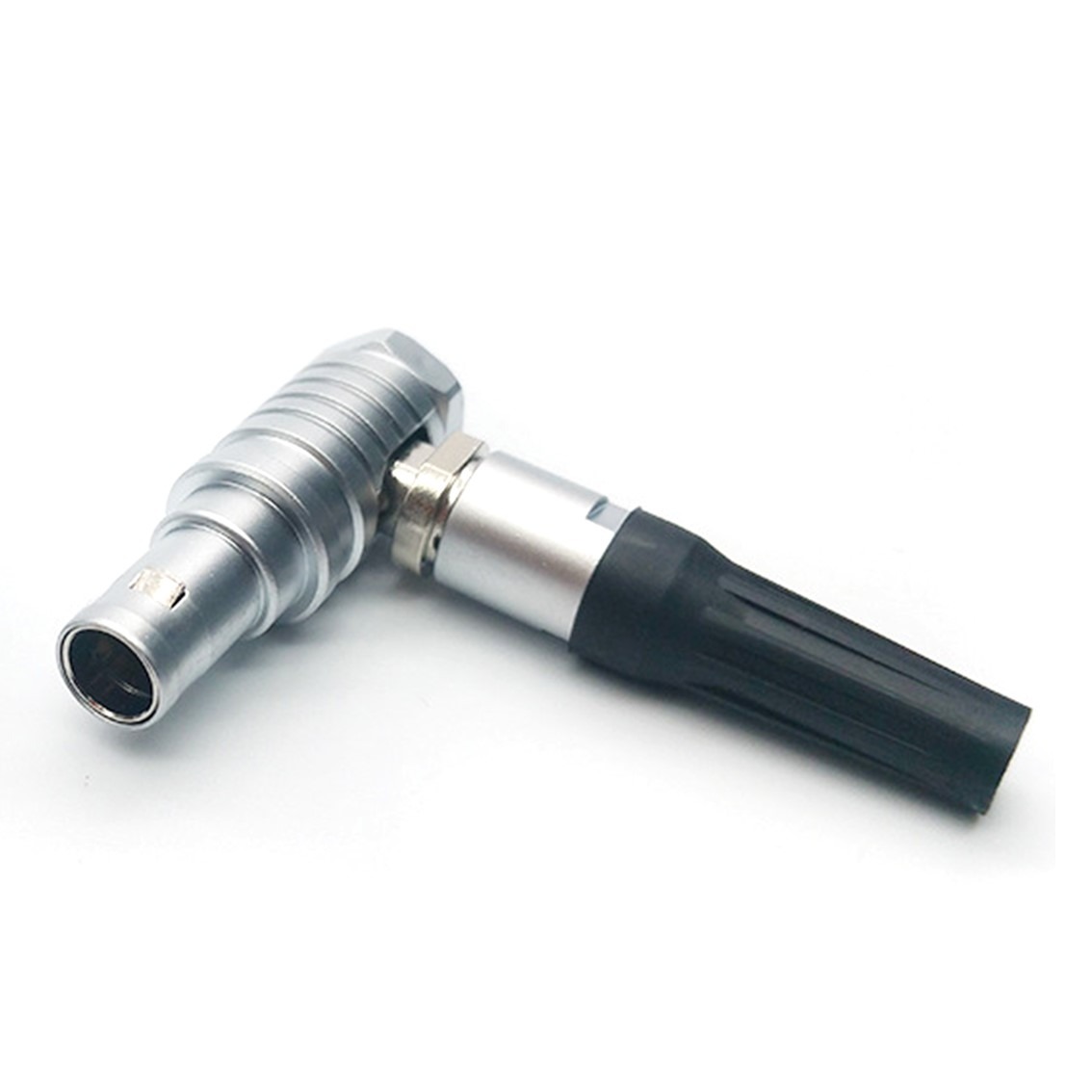

LINKET TPG.0B.304.CLAD32N B Series Push-Pull Circular Connector with Cable Clamp, Right Angle Plug, 0B, 4 Male Pin, Cable Type, Solder, Collet Size 32, IP50

LINKET CE1LINKET ROHS Report
SKU: MB-1001-102-1007
MPN: TPG.0B.304.CLAD32N

Key Features

  • Compact right angle configuration
  • High density 4 pin layout
  • Mechanical push-pull coupling system
  • Integral 3.2mm cable collet
  • Certified IP50 dust protection
  • Replacement for FPG.0B.304.CLAD32N

Product Specifications

Number of Contacts：
2345679
In-Stock
Qty.
1
Unit Price
$ 22.35
Ext. Price
$ 22.35
$ 22.35
Qty.
Unit Price
Ext. Price
1+
$22.35
$ 22.35
10+
$20.12
$ 201.20
50+
$17.88
$ 894.00
200+
$15.65
$ 3130.00
Inquiry for more quantity?
Specifications
Show Similar Products >
Attribute
Value
Search
Manufacturer
LINKET
Orientation
Right Angle
Connector Type
Push-Pull Circular Connector
Contact Termination
Solder
Rated Current
7A
Mounting Type
Cable
Contact Material
Copper Alloy
Contact Plating
Gold over Nickel Plated
Protection Rating
IP50
Shielding
Shielded
Shell Size
0B
Series
B Series
Contact Gender
Male Pins
Insulation resistance
≥5000MΩ
Wire Gauge
22AWG
Brand
LINKET
Number of Contacts
4
Operating Temperature
-55°C to +250°C
Mating Cycles
5000 Cycles
Shell Style
TPG
Plug or Socket
Plug
Alignment Key
G
Test Voltage (Contact-Contact)
0.85 kV DC
Test Voltage (Contact-Shell)
0.70 kV DC
Collet Size Code
32
Cable Diameter
2.2mm-3.2mm
Housing Material
Brass
Housing Plating
Chrome
Insulator material 1
PPS
Show Similar Products >
Description

The TPG.0B.302.CLAD32N is a high-performance, right-angle push-pull circular connector engineered for tight, space-constrained industrial electronics and medical instrumentation. Featuring a robust 0B shell size and 2 precision male pins, it establishes a reliable, vibration-resistant connection ideal for high-density architectures. This cable-mounted variant utilizes solder termination to ensure durable mechanical and electrical links. Equipped with an integrated cable clamp and a 3.2mm collet size, the assembly mitigates cable strain effectively. Delivering an IP50 rating for protection against ingress from dust, this connector provides R&D engineers and procurement teams with a reliable cross-compatible solution for critical signal routing projects.

B Series Push-Pull Connectors

Experience precision and reliability with the B Series push-pull interlocking connectors. Engineered as a seamless, high-performance alternative to LEMO® B series connectors, these premium circular connectors are designed for secure, rapid mating in critical environments. Featuring an advanced self-latching mechanism, multiple keying options to prevent cross-mating, and 360-degree shielding for full EMI/RFI protection, the B Series guarantees uncompromising signal integrity. Ideal for industrial control, medical instrumentation, and broadcast equipment, these connectors provide a cost-effective, durable, and highly compatible connectivity solution tailored for your most demanding engineering projects.

Part Number Rules

Structure

Shell Sizes

Insert Configuration for 0B Series

Metabee B Series Push-Pull Connectors

Applications

The B Series connectors are highly versatile and engineered for critical applications where reliability, precision, and quick mating are non-negotiable. Key industries and uses include:

  • Medical Equipment: Patient monitoring systems, electrosurgical devices, and diagnostic imaging where secure, failsafe connections are essential.
  • Test & Measurement: Laboratory instruments, oscilloscopes, and precision sensors requiring uncompromised signal integrity and frequent connection cycles.
  • Broadcast & Audio/Video: High-definition cameras, professional audio mixing equipment, and outside broadcast (OB) vehicles needing durable, blind-mating capabilities.
  • Industrial Automation: Robotics, factory control systems, and heavy machinery that demand vibration-resistant and rugged connectivity.
  • Data & Communications: High-speed data transmission equipment and secure communication networks operating in demanding environments.
  • Automotive & Motorsport: Telemetry systems, crash test sensors, and in-vehicle diagnostics requiring lightweight yet robust connections.
