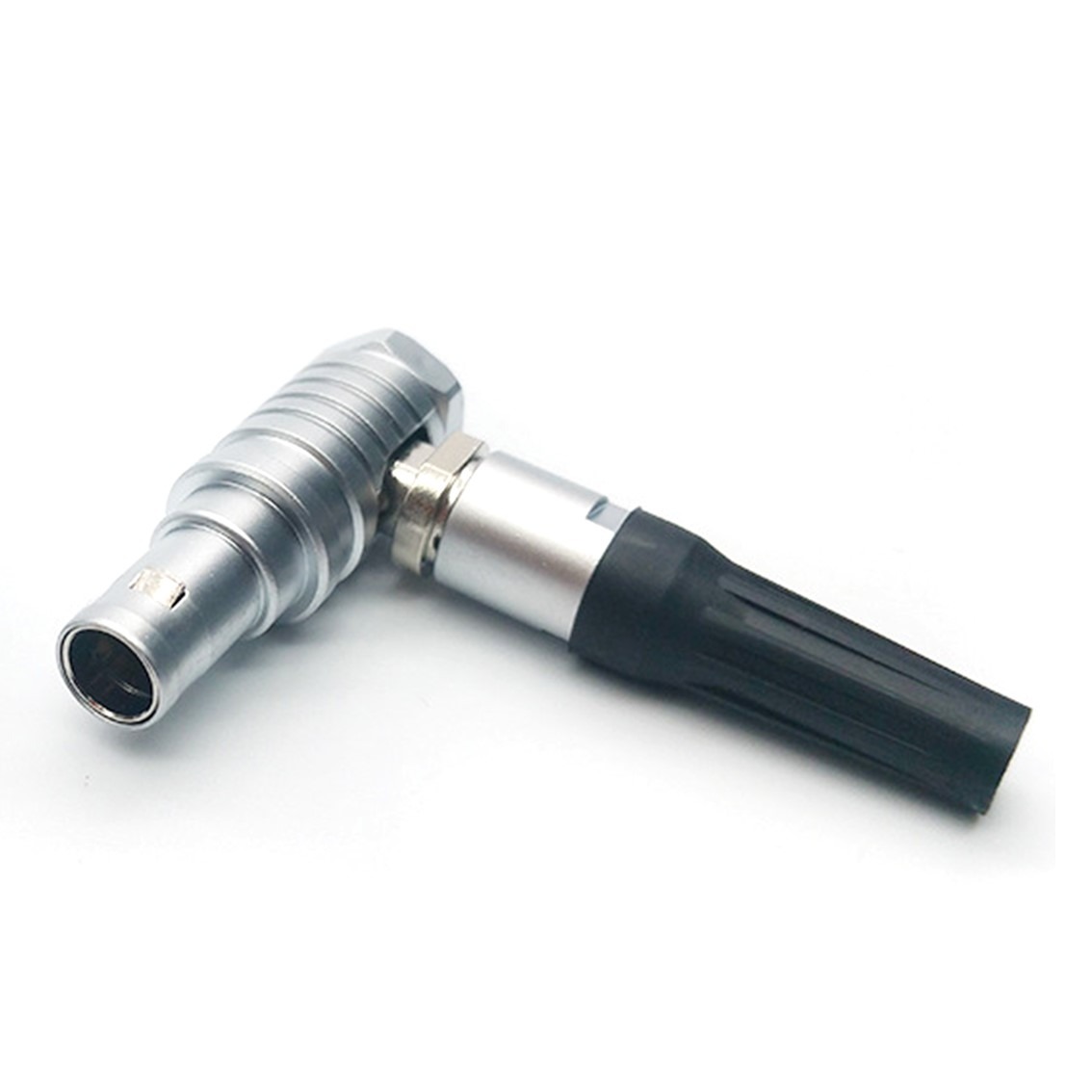

LINKET TPG.0B.306.CLAD32N B Series Push-Pull Circular Connector with Cable Clamp, Right Angle Plug, 0B, 6 Male Pin, Cable Type, Solder, Collet Size 32, IP50

LINKET CE1LINKET ROHS Report
SKU: MB-1001-102-1013
MPN: TPG.0B.306.CLAD32N

Key Features

  • High density 6 pin design
  • Compact right angle footprint
  • Quick disconnect push-pull system
  • Secure 3.2mm cable clamp
  • Ingress protected IP50 rating
  • Replacement for FPG.0B.306.CLAD32N

Product Specifications

Number of Contacts：
2345679
In-Stock
Qty.
1
Unit Price
$ 23.53
Ext. Price
$ 23.53
$ 23.53
Qty.
Unit Price
Ext. Price
1+
$23.53
$ 23.53
10+
$21.18
$ 211.80
50+
$18.82
$ 941.00
200+
$16.47
$ 3294.00
Inquiry for more quantity?
Specifications
Show Similar Products >
Attribute
Value
Search
Manufacturer
LINKET
Orientation
Right Angle
Connector Type
Push-Pull Circular Connector
Contact Termination
Solder
Rated Current
2.5A
Mounting Type
Cable
Contact Material
Copper Alloy
Contact Plating
Gold over Nickel Plated
Protection Rating
IP50
Shielding
Shielded
Shell Size
0B
Series
B Series
Contact Gender
Male Pins
Insulation resistance
≥5000MΩ
Wire Gauge
28AWG
Brand
LINKET
Number of Contacts
6
Operating Temperature
-55°C to +250°C
Mating Cycles
5000 Cycles
Shell Style
TPG
Plug or Socket
Plug
Alignment Key
G
Test Voltage (Contact-Contact)
0.85 kV DC
Test Voltage (Contact-Shell)
0.65 kV DC
Collet Size Code
32
Cable Diameter
2.2mm-3.2mm
Housing Material
Brass
Housing Plating
Chrome
Insulator material 1
PPS
Show Similar Products >
Description

The TPG.0B.306.CLAD32N is a ultra-dense, 6-pin right-angle push-pull circular connector tailored for advanced medical electronics, robotics, and industrial automation interfaces. The 0B shell size incorporates 6 precision-engineered male solder contacts, maximizing data throughput in an ultra-compact footprint. Its right-angle profile allows for a highly clean cable layout inside crowded electronic modules. The self-latching push-pull structure offers rapid, reliable mating security. Coupled with an integrated cable clamp and a 3.2mm collet size, it protects small-diameter wires against heavy tension. With an IP50 rating for dust resistance, this connector fulfills critical R&D operational specifications.

B Series Push-Pull Connectors

Experience precision and reliability with the B Series push-pull interlocking connectors. Engineered as a seamless, high-performance alternative to LEMO® B series connectors, these premium circular connectors are designed for secure, rapid mating in critical environments. Featuring an advanced self-latching mechanism, multiple keying options to prevent cross-mating, and 360-degree shielding for full EMI/RFI protection, the B Series guarantees uncompromising signal integrity. Ideal for industrial control, medical instrumentation, and broadcast equipment, these connectors provide a cost-effective, durable, and highly compatible connectivity solution tailored for your most demanding engineering projects.

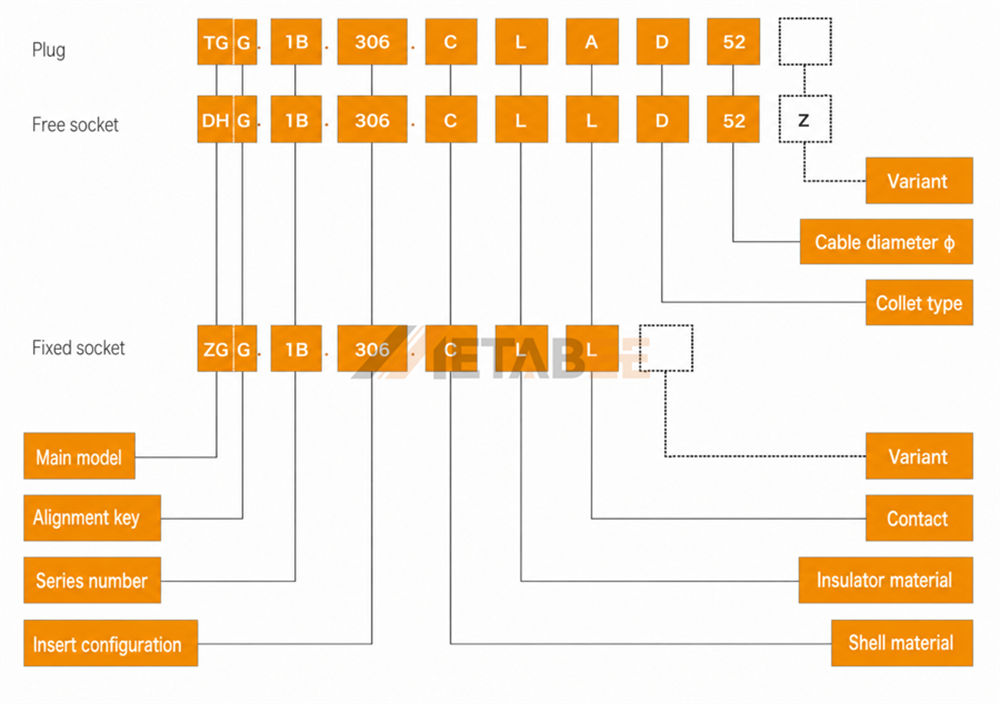

Part Number Rules

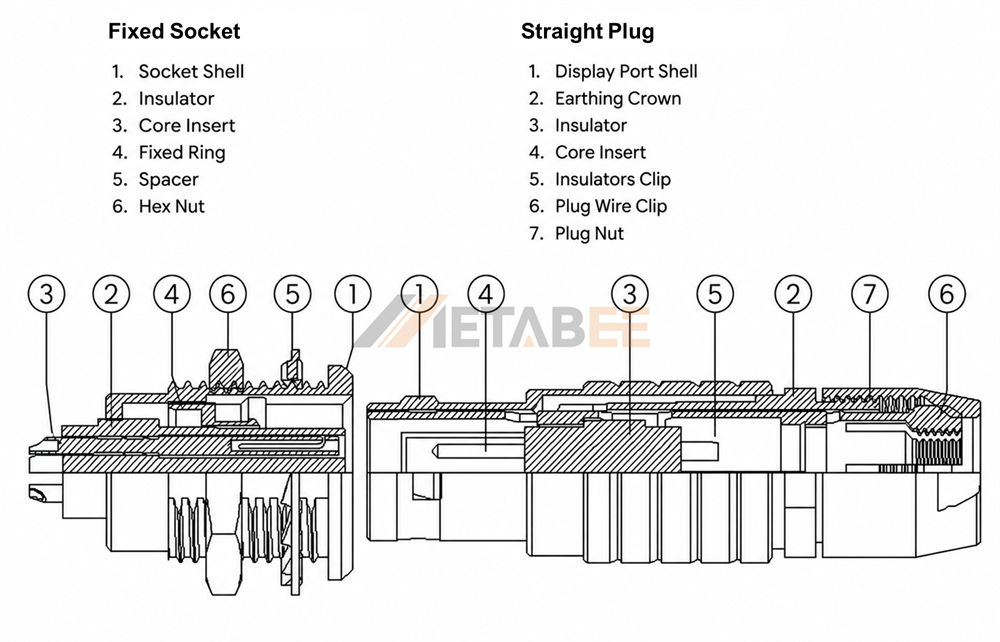

Structure

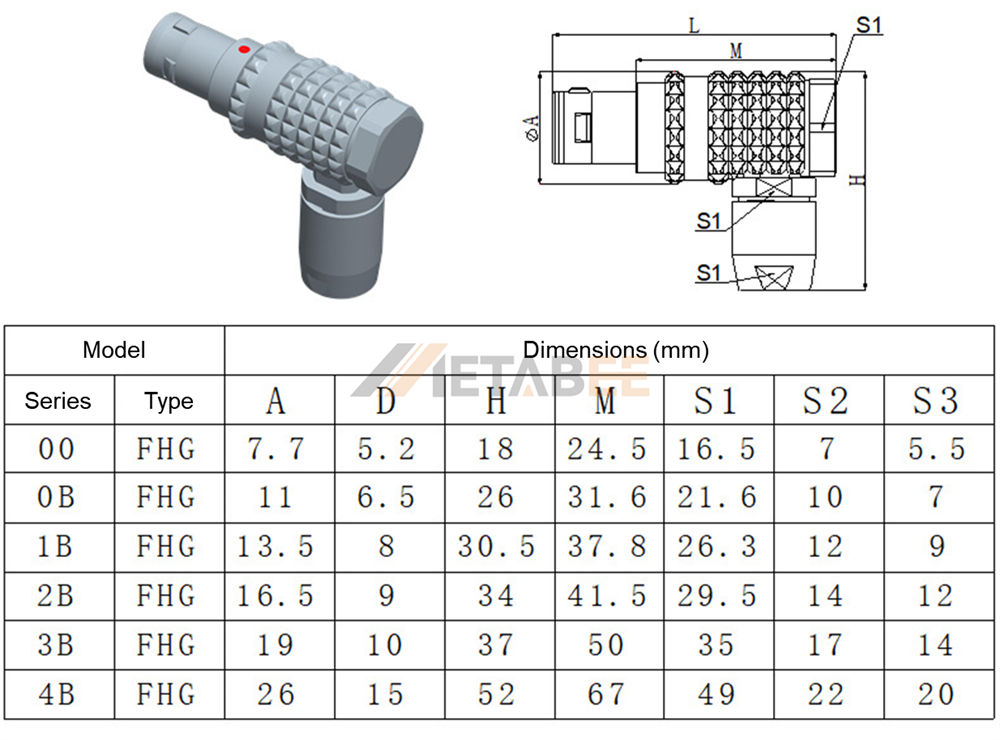

Shell Sizes

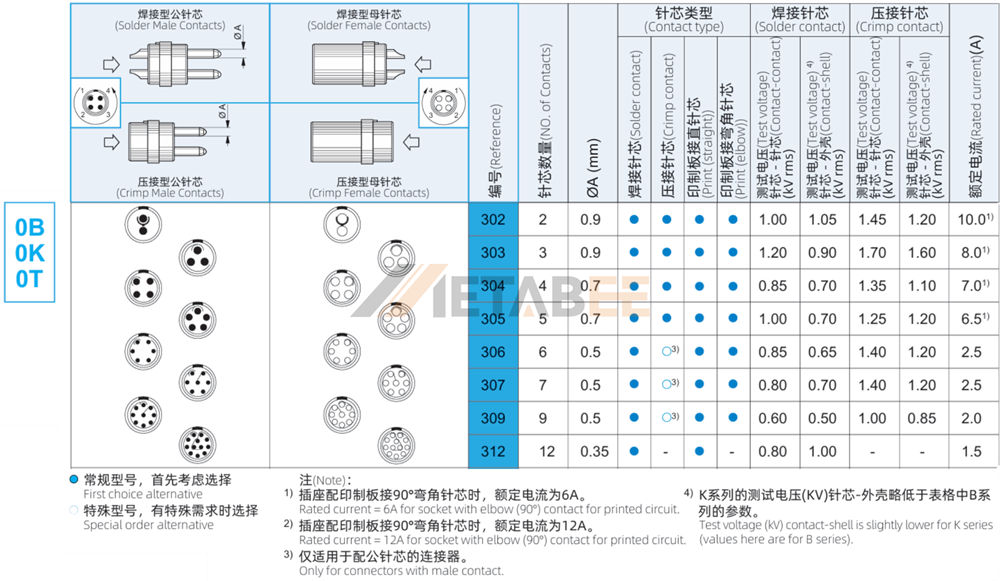

Insert Configuration for 0B Series

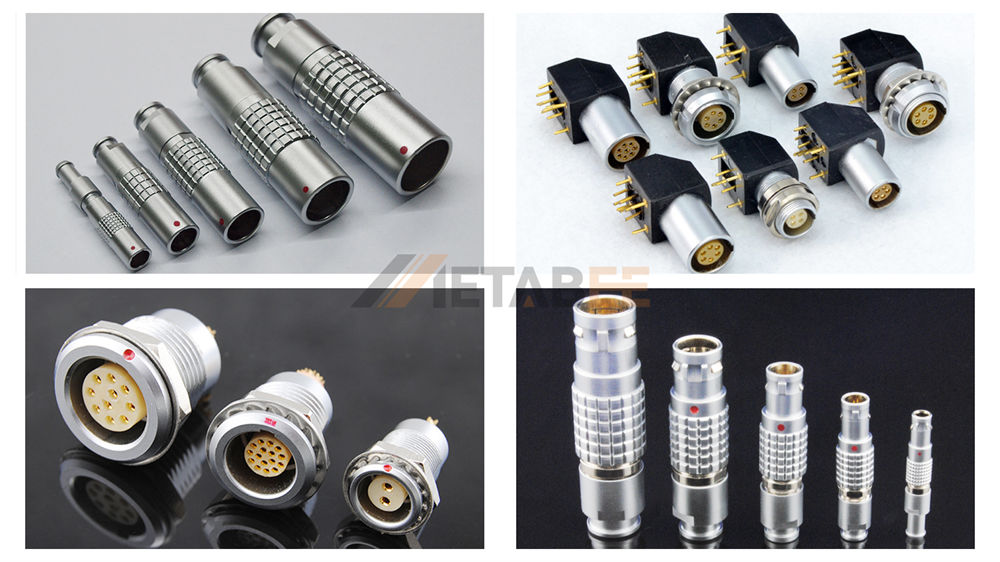

Metabee B Series Push-Pull Connectors

Applications

The B Series connectors are highly versatile and engineered for critical applications where reliability, precision, and quick mating are non-negotiable. Key industries and uses include:

  • Medical Equipment: Patient monitoring systems, electrosurgical devices, and diagnostic imaging where secure, failsafe connections are essential.
  • Test & Measurement: Laboratory instruments, oscilloscopes, and precision sensors requiring uncompromised signal integrity and frequent connection cycles.
  • Broadcast & Audio/Video: High-definition cameras, professional audio mixing equipment, and outside broadcast (OB) vehicles needing durable, blind-mating capabilities.
  • Industrial Automation: Robotics, factory control systems, and heavy machinery that demand vibration-resistant and rugged connectivity.
  • Data & Communications: High-speed data transmission equipment and secure communication networks operating in demanding environments.
  • Automotive & Motorsport: Telemetry systems, crash test sensors, and in-vehicle diagnostics requiring lightweight yet robust connections.
