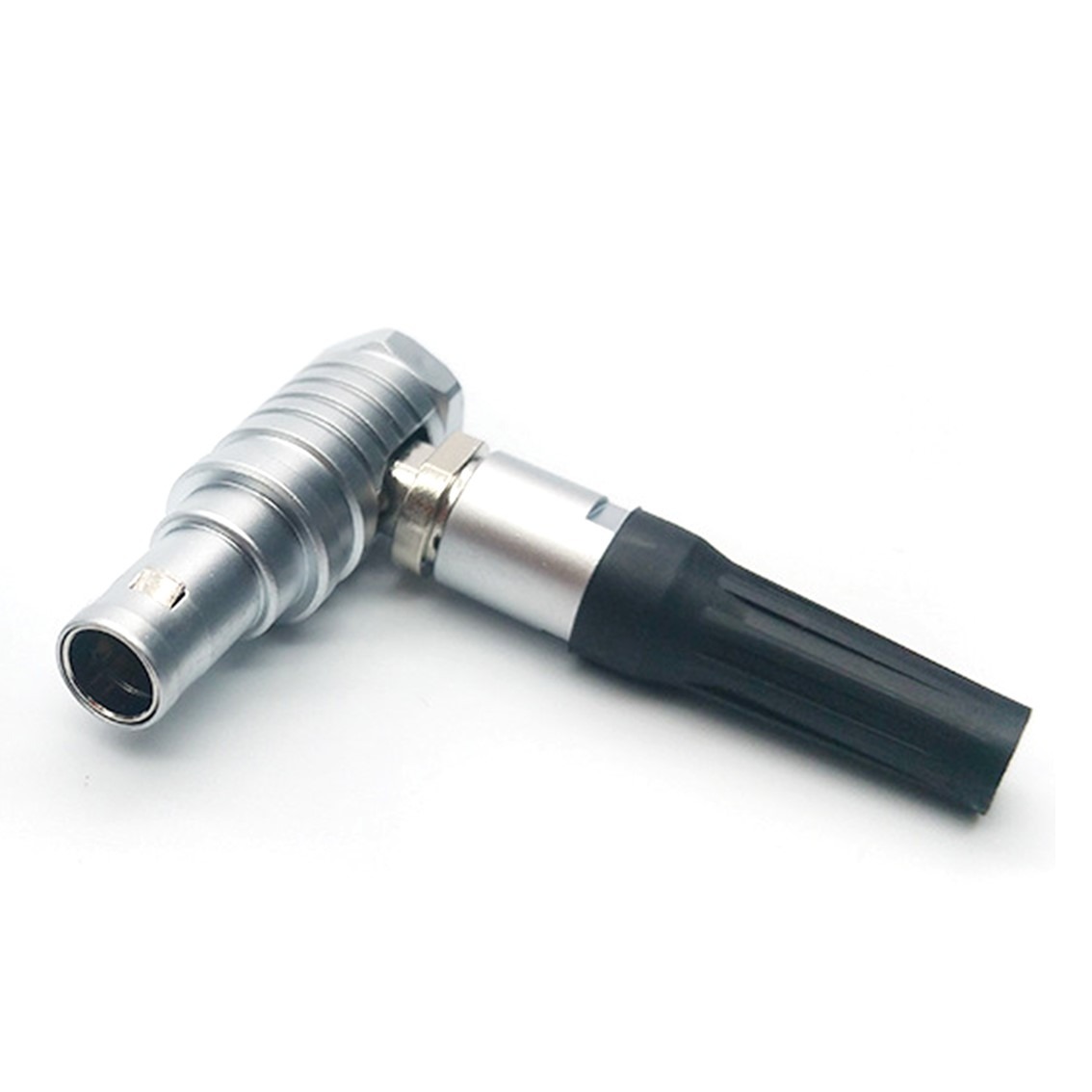

LINKET TPG.0B.306.CLAD52N B Series Push-Pull Circular Connector with Cable Clamp, Right Angle Plug, 0B, 6 Male Pin, Cable Type, Solder, Collet Size 52, IP50
Key Features
Product Specifications
Number of Contacts：
2345679In-Stock
Qty.
1
Unit Price
$ 23.53
Ext. Price
$ 23.53
$ 23.53
Qty.
Unit Price
Ext. Price
1+
$23.53
$ 23.53
10+
$21.18
$ 211.80
50+
$18.82
$ 941.00
200+
$16.47
$ 3294.00
Specifications
Attribute
Value
Search
Manufacturer
LINKET
Orientation
Right Angle
Connector Type
Push-Pull Circular Connector
Contact Termination
Solder
Rated Current
2.5A
Mounting Type
Cable
Contact Material
Copper Alloy
Contact Plating
Gold over Nickel Plated
Protection Rating
IP50
Shielding
Shielded
Shell Size
0B
Series
B Series
Contact Gender
Male Pins
Insulation resistance
≥5000MΩ
Wire Gauge
28AWG
Brand
LINKET
Number of Contacts
6
Operating Temperature
-55°C to +250°C
Mating Cycles
5000 Cycles
Shell Style
TPG
Plug or Socket
Plug
Alignment Key
G
Test Voltage (Contact-Contact)
0.85 kV DC
Test Voltage (Contact-Shell)
0.65 kV DC
Collet Size Code
52
Cable Diameter
4.2mm-5.2mm
Housing Material
Brass
Housing Plating
Chrome
Insulator material 1
PPS
Description
The TPG.0B.306.CLAD52N is a high-reliability, 6-pin right-angle push-pull circular connector built for challenging industrial automation and data logging applications. Enclosed in a compact 0B metal shell, it arranges 6 high-conductivity male solder pins for consistent, low-noise performance. The right-angle design avoids cable-kinking issues in tight-fitting machine panels. An integrated heavy-duty cable clamp paired with a 5.2mm collet size easily secures robust industrial wiring bundles against accidental disconnects. Featuring an IP50 rating for dependable dust immunity, this connector delivers the elite technical compliance and endurance required by modern R&D platforms and global procurement workflows.
B Series Push-Pull Connectors
Experience precision and reliability with the B Series push-pull interlocking connectors. Engineered as a seamless, high-performance alternative to LEMO® B series connectors, these premium circular connectors are designed for secure, rapid mating in critical environments. Featuring an advanced self-latching mechanism, multiple keying options to prevent cross-mating, and 360-degree shielding for full EMI/RFI protection, the B Series guarantees uncompromising signal integrity. Ideal for industrial control, medical instrumentation, and broadcast equipment, these connectors provide a cost-effective, durable, and highly compatible connectivity solution tailored for your most demanding engineering projects.Part Number Rules
Structure
Shell Sizes
Insert Configuration for 0B Series
Metabee B Series Push-Pull Connectors
Applications
The B Series connectors are highly versatile and engineered for critical applications where reliability, precision, and quick mating are non-negotiable. Key industries and uses include:
- Medical Equipment: Patient monitoring systems, electrosurgical devices, and diagnostic imaging where secure, failsafe connections are essential.
- Test & Measurement: Laboratory instruments, oscilloscopes, and precision sensors requiring uncompromised signal integrity and frequent connection cycles.
- Broadcast & Audio/Video: High-definition cameras, professional audio mixing equipment, and outside broadcast (OB) vehicles needing durable, blind-mating capabilities.
- Industrial Automation: Robotics, factory control systems, and heavy machinery that demand vibration-resistant and rugged connectivity.
- Data & Communications: High-speed data transmission equipment and secure communication networks operating in demanding environments.
- Automotive & Motorsport: Telemetry systems, crash test sensors, and in-vehicle diagnostics requiring lightweight yet robust connections.
