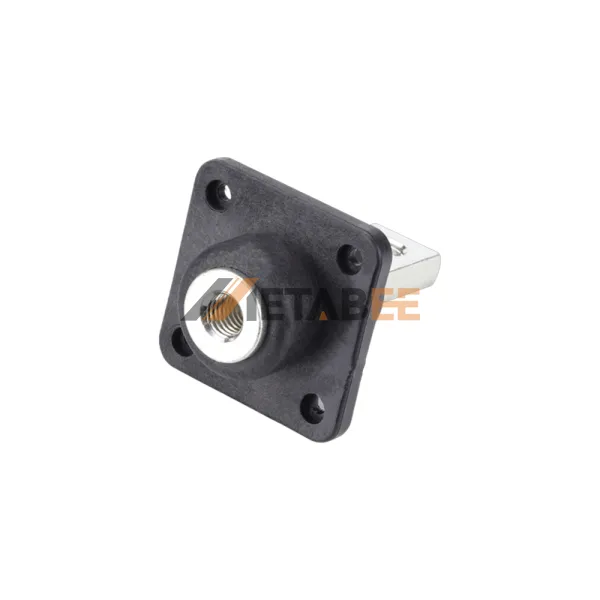

Single Stud Type Junction Blocks 500A Internal Screw (M10) Busbar with M10 Flange Mounting Black
Key Features
Datasheet & Resources
drawing_lf-fm10-4970-500a-b
In-Stock
Qty.
1
Unit Price
€ 11.75
Ext. Price
€ 11.75
€ 11.75
Qty.
Unit Price
Ext. Price
50+
€10.58
€ 529.00
200+
€9.89
€ 1978.00
500+
€9.31
€ 4655.00
Specifications
Attribute
Value
Search
Manufacturer
Renhotec
Color
Black
Mounting Feature
Bulkhead
Contact Finish
Tin
Contact Termination
Busbar, Screw
Rated Current
500A
Mounting Type
Panel Mount
Contact Material
Brass
Rated Voltage
600V
Flammability Rating
UL94 V-0
Insulation Material
PBT
Body Style
Studded
Termination Thread
M10
Description
- Pass current through a panel
- Used to connect two or more voltage lines
- Nickel plated brass post
- Tin plated brass conductive nuts
- Stainless steel torque fastener nuts
- Termination ratings ranging from 20-500A
Feed-Through & Single Stud Junction Blocks
Metabee feedthrough and Single stud terminal blocks are used for heavy-duty ground or power connection points in AC or DC circuits. The modular construction provides design and manufacturing flexibility with mounting options ideal for transformers, communications and computer power sections, and various vehicle electrical systems.
A Wide Range of Junction Blocks is Available
- Transformers
- Communications
- Computer power sections
- Various vehicle electrical systems
Datasheet & Resources
drawing_lf-fm10-4970-500a-b
Shopping Guide
Shipping | Delivery Period | Metabee ships orders once a day at about 5pm except Sunday. Once shipped, estimated delivery time depends on the below carriers you chose. Express: 3-7 days. Standard Post: 7-20 days. | |
| Shipping Rates | Shipping rates for your order can be found in the shopping cart. | ||
| Shipping Options | We offer express and standard delivery services. | ||
| Shipping Tracking | We will notify you by email with tracking number once order is shipped. You can track your order using the “Track My Order” feature. | ||
| Returning/Warranty | Returning | Returns are normally accepted when completed within 30 days from date of shipment, please contact customer service for a return authorization. Parts should be unused and in original packaging. Customer has to take charge for the shipping | |
| Warranty | All Metabee purchases come with a 30-day money-back return policy, plus 1-year Metabee warranty against any manufacturing defects. | ||
| This warranty shall not apply to any item where defects have been caused by improper customer assembly failure by customer to follow instructions, product modification, negligent or improper operation | |||
| Ordering | How to Buy | Metabee accepts online orders. | |
| Add to cart > Check out > Submit order > Complete payment > Delivery | |||
| Payment | PayPal, Credit Card includes Visa, Master, American Express, Bank transfer. | ||
Recommended For You
Reviews(10)
5 /5
All reviews come from verified purchasers
5
100%
4
0%
3
0%
2
0%
1
0%
C****r
There good cleaned up bunch wires from terminals mount any where I like them
C****r
There good cleaned up bunch wires from terminals mount any where I like them
C****r
Better than I expected. I used them in an offroad racing application and its held up great.
C****r
Better than I expected. I used them in an offroad racing application and its held up great.
C****r
Bought to replace damaged battery terminal junction/splice blocks on my 53 year old classic car. Can no longer find the original part and mine we badly damaged by rust, cracking and the ravages of time. Fit where the old ones were, just needed to drill one new hole to mount as my original was a one bolt mount which created some of the damage. Great product great fit. Looks like original if you don't notice second mount on the bottom. I turned vertically to mostly hide the bottom screw.
C****r
Bought to replace damaged battery terminal junction/splice blocks on my 53 year old classic car. Can no longer find the original part and mine we badly damaged by rust, cracking and the ravages of time. Fit where the old ones were, just needed to drill one new hole to mount as my original was a one bolt mount which created some of the damage. Great product great fit. Looks like original if you don't notice second mount on the bottom. I turned vertically to mostly hide the bottom screw.
C****r
These terminals are well worth the money. I would definitely buy again.
C****r
These terminals are well worth the money. I would definitely buy again.
C****r
I was changing the battery location in my latest project car. I used a short battery cable to the starter and a longer cable to cross from the other side of the engine compartment. I tied them together on the fender near the starter with the terminal for positive battery connection (red). It also makes a handy place to charge the battery or jump start the car. I adopted the idea from Mercedes.
C****r
I was changing the battery location in my latest project car. I used a short battery cable to the starter and a longer cable to cross from the other side of the engine compartment. I tied them together on the fender near the starter with the terminal for positive battery connection (red). It also makes a handy place to charge the battery or jump start the car. I adopted the idea from Mercedes.
