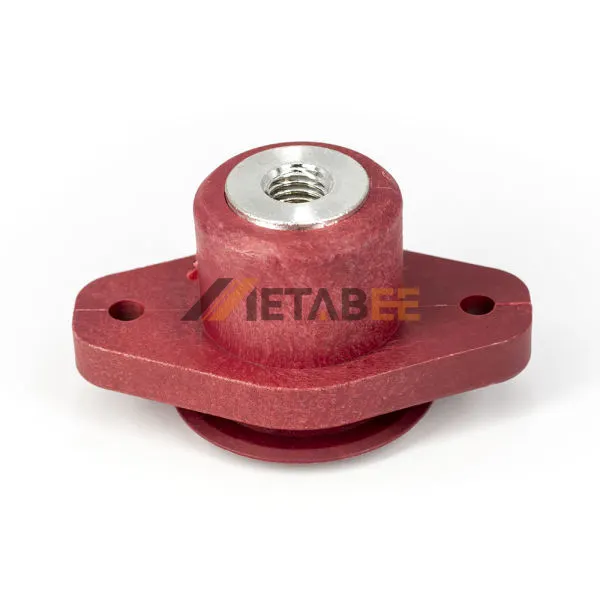

Single Stud Type Junction Blocks 500A Internal Screw (M8) Internal Screw (M8) Flange Mounting Red
Key Features
Datasheet & Resources
drawing_of_id20220800088
In-Stock
Qty.
1
Unit Price
$ 10.30
Ext. Price
$ 10.30
$ 10.30
Qty.
Unit Price
Ext. Price
50+
$9.20
$ 460.00
200+
$8.70
$ 1740.00
500+
$8.10
$ 4050.00
Specifications
Attribute
Value
Search
Manufacturer
Renhotec
Color
Red
Mounting Feature
Bulkhead
Contact Finish
Tin
Contact Termination
Screw
Rated Current
500A
Mounting Type
Panel Mount
Contact Material
Brass
Rated Voltage
600V
Flammability Rating
UL94 V-0
Insulation Material
PBT
Body Style
Studded
Termination Thread
M8
Description
- Pass current through a panel
- Used to connect two or more voltage lines
- Nickel plated brass post
- Tin plated brass conductive nuts
- Stainless steel torque fastener nuts
- Termination ratings ranging from 20-500A
Feed-Through & Single Stud Junction Blocks
Metabee feedthrough and Single stud terminal blocks are used for heavy-duty ground or power connection points in AC or DC circuits. The modular construction provides design and manufacturing flexibility with mounting options ideal for transformers, communications and computer power sections, and various vehicle electrical systems.
