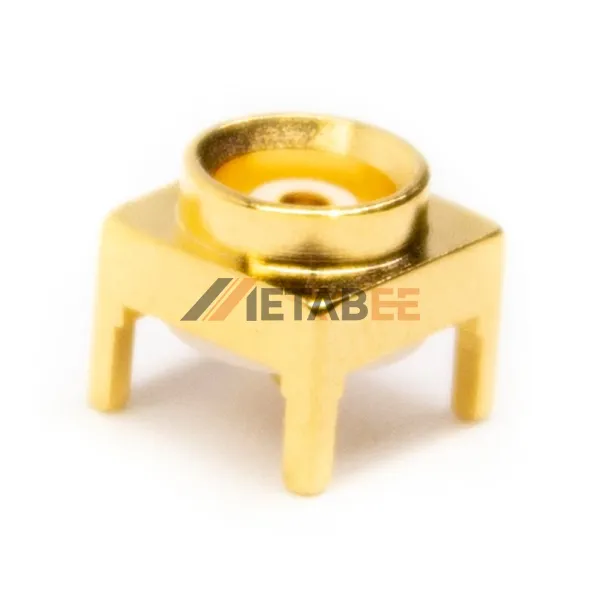

Straight MCX Jack Solder Panel Mount Through Hole
Key Features
Datasheet & Resources
id20220500845_dosin-809-0091
In-Stock
Qty.
500
Unit Price
€ 1.52
Ext. Price
€ 760.00
€ 760.00
Qty.
Unit Price
Ext. Price
1+
€1.70
€ 1.70
200+
€1.52
€ 304.00
1000+
€1.29
€ 1290.00
2000+
€1.02
€ 2040.00
Specifications
Attribute
Value
Search
Manufacturer
Renhotec
Orientation
Straight
Connector Type
Jack
Fastening Type
Push Pull
Mounting Feature
Through Hole
Contact Finish
Gold
Contact Termination
Solder
Mounting Type
Panel Mount
Contact Material
Brass
Shell Finish
Gold Plated
Number of Positions
1
Insulation Material
PTFE
Contact Type
Female Pin
Shield Termination
Solder
Description
- Broadband performance with low reflection DC to 6 GHz
- Quick connect/disconnect snap-on mating reduces installation time
- Available for 50 or 75 ohm applications
- High reliability and long service life
What is the MCX Connector?
The MCX (Micro Coaxial) Series offers 50 or 75-ohm options and has broadband capability from DC to 6 GHz. In addition, the MCX series features a secure, fast and simple snap-on/snap-off coupling. Introduced in the 1980s, the MCX connectors are compliant with European CECC 22220 specifications.
This series offers designers an option where weight and physical space are limited. While the MCX uses the same internal contact and insulator dimensions as the SMB, the plug has an outside diameter of 0.140 inches, 30% smaller than the SMB.

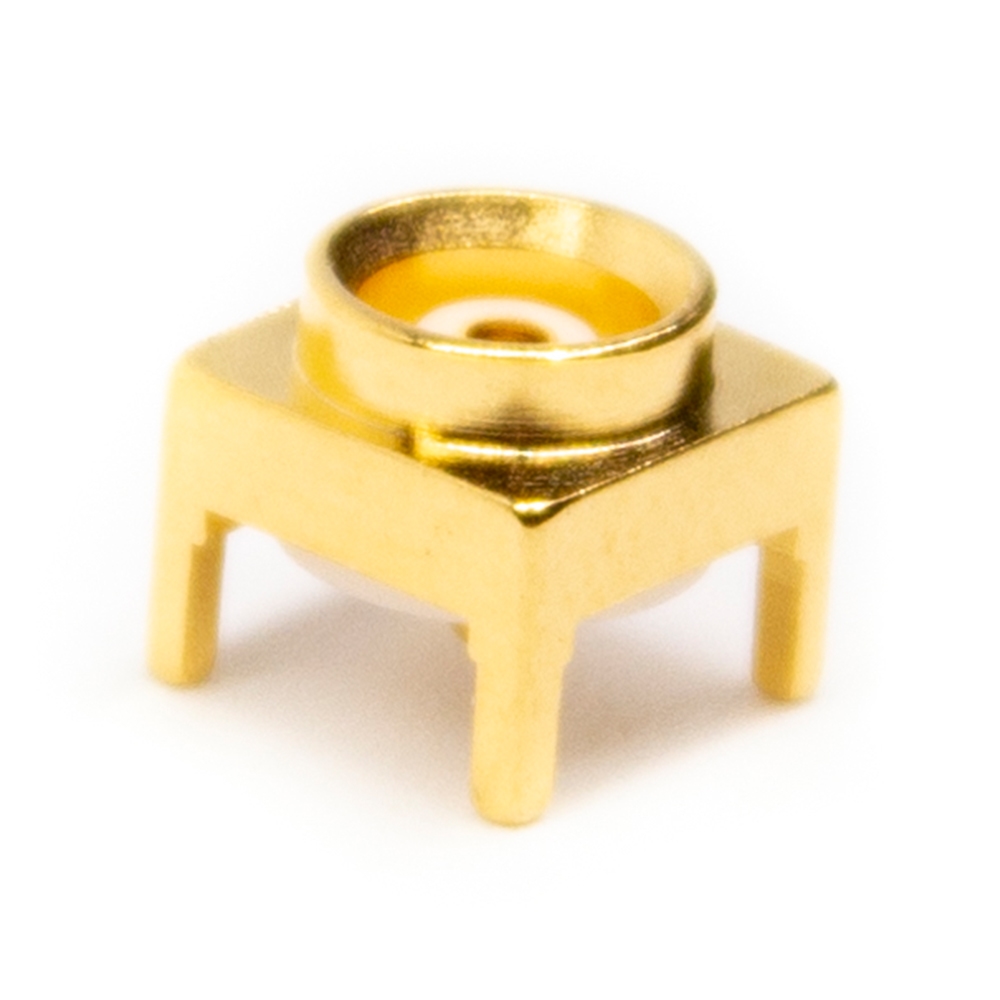

View of MCX Connector
High reliability and long service life
MCX and the smaller MMCX connector are frequently used to connect external antennas to GPS receivers. They are also common on USB DVB-T tuners for computers and laptops, to connect an external antenna to the tuner.
Push/Snap-on locking for fast and easy disconnection
MCX subminiature snap-on connectors offer an excellent blend of size,weight, durability and performance for applications such as mobile and fixed telecommunications.
- WLAN
- Global Positioning System (GPS)
- PC/LAN
- Automotive
- Base Station
- Head End Equipment
- Radios
- Wireless/Network Antenna
- Instrumentation
- Telecommunications
