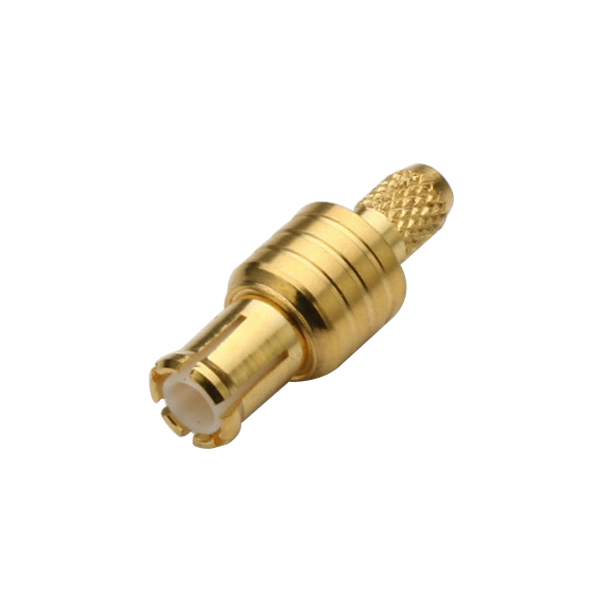

Name: Straight MCX Male Crimp RG316 Cable Type 50ohm
Brand: Metabee
SKU: ID20220500880
Price: 1.79 USD
Availability: InStock

Description

Broadband performance with low reflection DC to 6 GHz
Quick connect/disconnect snap-on mating reduces installation time
Available for 50 or 75 ohm applications
High reliability and long service life

What is the MCX Connector?

The MCX (Micro Coaxial) Series offers 50 or 75-ohm options and has broadband capability from DC to 6 GHz. In addition, the MCX series features a secure, fast and simple snap-on/snap-off coupling. Introduced in the 1980s, the MCX connectors are compliant with European CECC 22220 specifications.

This series offers designers an option where weight and physical space are limited. While the MCX uses the same internal contact and insulator dimensions as the SMB, the plug has an outside diameter of 0.140 inches, 30% smaller than the SMB.

View of MCX Connector

High reliability and long service life

MCX and the smaller MMCX connector are frequently used to connect external antennas to GPS receivers. They are also common on USB DVB-T tuners for computers and laptops, to connect an external antenna to the tuner.

Push/Snap-on locking for fast and easy disconnection

MCX subminiature snap-on connectors offer an excellent blend of size,weight, durability and performance for applications such as mobile and fixed telecommunications.

WLAN
Global Positioning System (GPS)
PC/LAN
Automotive
Base Station
Head End Equipment
Radios
Wireless/Network Antenna
Instrumentation
Telecommunications
