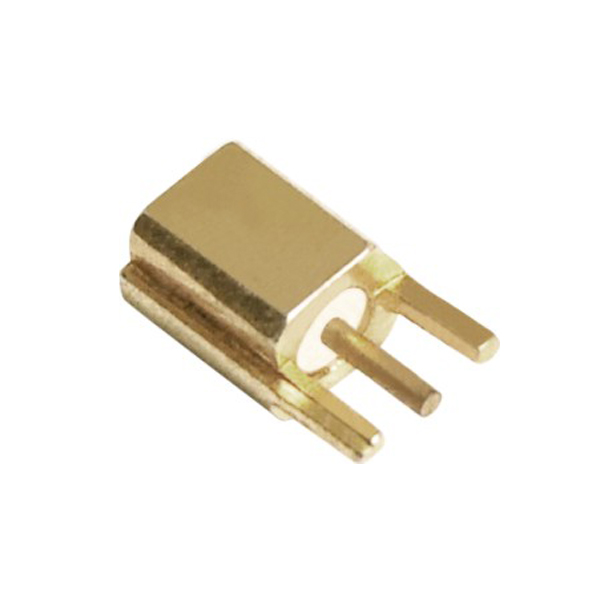

Straight MMCX Jack Solder Panel Mount SMT 50ohm
Key Features
Datasheet & Resources
id20220500412_dosin-809-0001
In-Stock
Qty.
1
Unit Price
₩ 2752.00
Ext. Price
₩ 2752.00
₩ 2752.00
Qty.
Unit Price
Ext. Price
1+
₩2,752
₩ 2752.00
200+
₩2,496
₩ 499200.00
1000+
₩2,111
₩ 2111000.00
2000+
₩1,697
₩ 3394000.00
Specifications
Attribute
Value
Search
Manufacturer
Renhotec
Orientation
Straight
Connector Type
Jack
Fastening Type
Snap on
Mounting Feature
SMT
Contact Finish
Gold
Contact Termination
Solder
Mounting Type
Panel Mount
Contact Material
Brass
Shell Finish
Gold Plated
Number of Positions
1
Insulation Material
PTFE
Contact Type
Female Pin
Shield Termination
Solder
Description
- Low-reflection broadband performance
- Low-cost, high-quality solution
- Quick connect/disconnect snap-on mating reduces installation time
- Compliant with European CECC 22000 specifications
- Available with straight and right angle plugs and printed circuit board connectors
Knowledge of MMCX Connectors
The MMCX (Miniature Coaxial) connector series is a miniature version of the MCX. It is a 50-ohm impedance interface with DC to 6 GHz broadband capability and secure, fast, and simple snap-on/snap-off coupling. The MMCX connector has a smaller footprint than the MCX series and is available in a variety of configurations.
MMCX connectors in this category will terminate to coaxial cables or PCBs (printed circuit boards). Our MMCX connector product line is built to exact microwave and RF industry specifications.
Like the MCX, the MMCX series is compliant with European CECC 22000 specifications.
View of the MMCX Connector
Quick connect/disconnect snap-on mating reduces installation time
The MMCX connector features a Snap-on / snap off coupling mechanism ensuring quick connect and disconnect mating which reduces the instillation time.
Available with straight and right angle plugs and printed circuit board connectors
MMCX connectors are rated to 500 pairing cycles. The connectors have a lock-snap mechanism allowing 360-degree rotation and usually have a 50 Ω impedance.
- Antennas
- Instrumentation
- Satcom
- Base Stations
- Telecommunications
- Broadband
- GPS
