In industrial automation, CNC machinery, and robotics, interconnect failure means costly line stoppages and unscheduled downtime. Continuous vibration, coolant exposure, and heavy EMI frequently overwhelm standard commercial connectors. To guarantee uninterrupted performance, design engineers rely on proven MIL-SPEC circular connectors—most notably the 3 industry workhorses: MS5015, 26482, and D38999. As a dedicated industrial interconnect manufacturer, Metabee provides this technical guide to help engineers and procurement teams choose, cross-reference, and deploy the right connector families for their equipment.
Introduction
What are MIL-SPEC Connectors?
MIL-SPEC (Military Specification) connectors are ultra-ruggedized interconnect devices originally developed to meet rigorous Department of Defense standards (such as MIL-DTL or legacy MIL-C specifications). These standards mandate exact shell dimensions, contact spacing, materials, and stringent environmental test protocols.
In the commercial and industrial sectors, standards like MS5015, 26482, and D38999 serve as an open, standardized framework that guarantees:
l Intermateability across manufacturers: Connectors built to the standard will mate reliably regardless of the brand, eliminating vendor lock-in.
l Predictable performance thresholds: Verified resistance against severe thermal shock, continuous mechanical vibration, and corrosive ingress.
At Metabee, we engineer our circular connector series to these exact dimensional and physical baselines, giving industrial builders high-reliability alternatives with rapid delivery and full design flexibility.
Why Industrial Equipment Relies on "Military-Grade" Circular Connectors
Despite their military origins, the daily proving ground for these connectors is the factory floor. Industrial OEMs choose them over light-duty plastic or standard circular connectors for three decisive reasons:
l Vibration-Proof Retention: Heavy stamping presses, CNC spindles, and servo drives generate continuous harmonic vibration. Standardized coupling mechanisms (coarse threaded nuts, 3-point bayonet locks, or anti-decoupling clutches) prevent accidental disconnection and contact fretting.
l Industrial Fluid and Dust Sealing: With resilient internal grommets and precision O-rings, these connectors reliably achieve IP67/IP68 ratings, shielding connections from cutting oils, synthetic coolants, metal shavings, and high-pressure washdowns.
l Sourcing Freedom & Drop-In Replacement: Standardized shell sizes and insert layouts allow procurement teams to seamlessly cross-reference parts. When traditional vendors face 16–26 week lead times, Metabee offers compatible, drop-in alternatives without requiring PCB redesigns or panel re-machining.

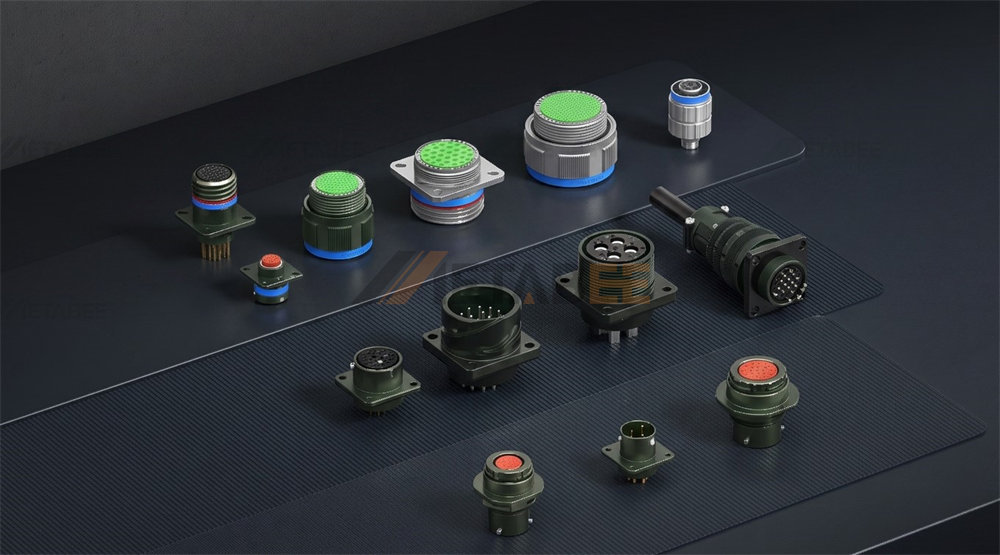

The Industrial Core: MS5015, 26482, and D38999 Connectors
While dozens of historical specifications exist, the vast majority of industrial machinery and automation platforms are powered by these three core families:

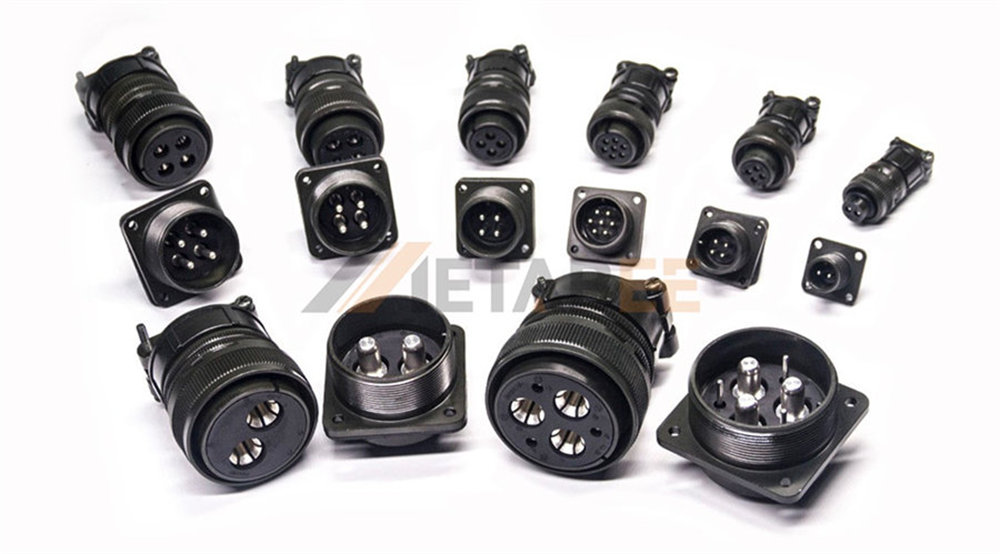

1. MIL-DTL-5015 (MS5015) Connectors: The Heavy Industrial Power & Drive Workhorse
Originally standardized during WWII, the MIL-DTL-5015 (commonly referred to as MS5015) is the undisputed industry standard for high-power distribution and electric motor connections.
Coupling Style: Coarse, heavy-duty single-lead screw thread.
Industrial Advantages:
l High Current Handling: Accommodates contact sizes from #16 up to #0, delivering continuous power up to 150A+ for large spindle and servo motors.
l Mechanical Resilience: Thick-walled cast or machined aluminum alloy shells resist heavy impacts, dropped tools, and rough handling.
l Cost-Effectiveness: Highly economical architecture for heavy-gauge power routing.
Key Industrial Applications: AC/DC servo drives, CNC machinery, welding power supplies, stamping equipment, and industrial power distribution panels.
Need drop-in replacements for costly OEM motor power leads?
Metabee supplies a complete range of MIL-DTL-5015 circular connectors and pre-wired servo cables. Request a 5015 catalog and free sample kit to verify physical fitment on your motor drives.
Related Posts:
What are MIL-DTL-5015 Connectors? Part Numbers, Specs, and Everything You Need to Know
Understanding MIL-DTL-5015 Connector Insert Arrangements: A Comprehensive Guide

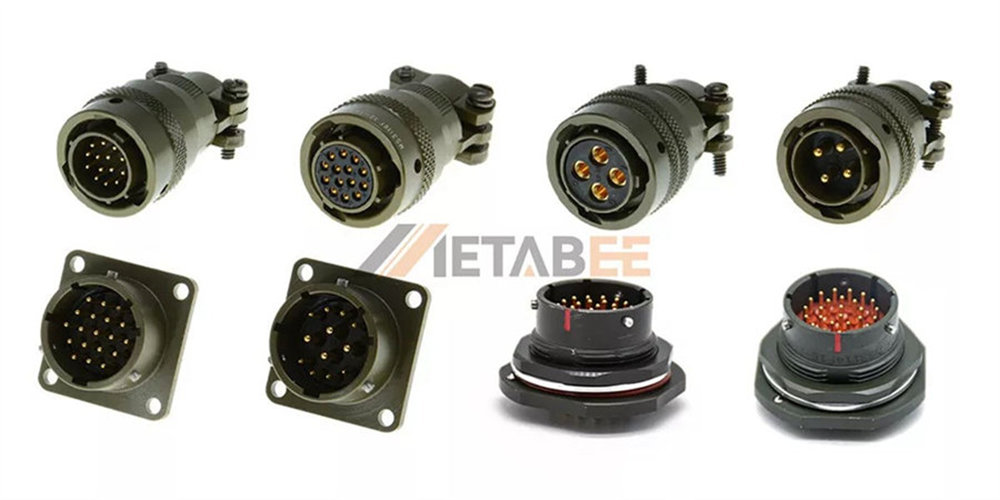

2. MIL-DTL-26482 Connectors: Rapid-Disconnect for Factory Automation & Sensors
For high-efficiency assembly lines where quick tool changeover and rapid field maintenance are priorities, MIL-DTL-26482 provides a fast, dependable quick-disconnect solution.
Coupling Style: 3-point bayonet coupling.
Industrial Advantages:
l 1/3-Turn Quick Disconnect: Locks and unlocks with a 120° rotation. An audible and tactile "click" confirms full mating, even for operators wearing thick industrial work gloves.
l Compact Medium-Density Layouts: Noticeably lighter and more compact than the 5015, easily fitting into tight sensor enclosures and compact control cabinets.
l Anti-Vibration Security: The positive bayonet lock will not back off under conveyor shock or reciprocating machinery motion.
Key Industrial Applications: Automation sensors, robotic tool-changers, packaging equipment, industrial flow meters, and test benches.
Accelerate maintenance turnarounds on your automated cells with Metabee’s 26482 Series I & II connectors, available in solder or crimp rear-release configurations for quick wiring.
Related Posts:
The Ultimate Guide to MIL-DTL-26482 Connectors: Features, Series, and Applications

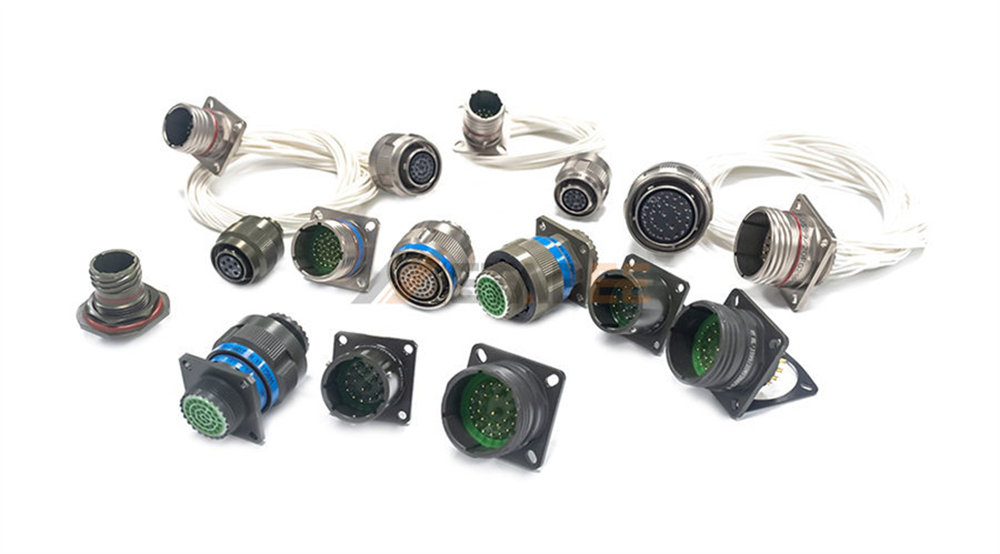

3. MIL-DTL-38999 (D38999) Series III Connectors: High-Density Signal & Precision Robotics
Modern smart factories rely on machine vision, multi-axis cobots, and automated guided vehicles (AGVs) requiring dozens of signal lines in ultra-compact spaces. MIL-DTL-38999 Series III (often designated D38999) delivers this high-density capability.
Coupling Style: Triple-start self-locking threaded coupling.
Industrial Advantages:
l Maximum Pin Density: Houses up to 128 high-density contacts (Size 22D) within compact shell envelopes, conserving valuable enclosure panel space.
l 100% Scoop-Proof Architecture: Deeply recessed pins prevent bending or pin damage during blind or angled mating in congested electrical cabinets.
l Superior 360° EMI/RFI Shielding: Integrated grounding fingers shield sensitive sensor and Ethernet communication signals from nearby variable-frequency drives (VFDs).
Key Industrial Applications: Multi-axis industrial robots, automated guided vehicles (AGVs/AMRs), machine vision inspection systems, and semiconductor equipment.
Related Post:
D38999 Part Number Breakdown: Your Essential Guide to Mil-Spec Connector Codes
MIL-DTL-5015 vs. MIL-DTL-26482 vs. MIL-DTL-38999 Connectors
Use this matrix to align your technical requirements with the right connector standard:
|
Selection Criteria |
MIL-DTL-5015 (MS5015) |
MIL-DTL-26482 |
MIL-DTL-38999 (D38999) Series III |
|
Primary Industrial Role |
Motor Power, High Current |
Sensors, Quick Tooling, Automation |
Robotics, Vision Systems, Clean Data |
|
Coupling Type |
Heavy Threaded Nut |
3-Point Bayonet (1/3 Turn) |
Triple-Start Anti-Decoupling Thread |
|
Mating Speed |
Standard |
Rapid (Ideal for frequent swapouts) |
Smooth / Fast |
|
Contact Density |
Low to Moderate (1 to 60+ pins) |
Medium (3 to 61 pins) |
High to Ultra-High (up to 128 pins) |
|
Max Current Handling |
Very High (up to 150A+) |
Moderate (up to 13A–22A) |
Signal to Medium (up to 5A–13A) |
|
Vibration Performance |
Good for static/rigid mounts |
High (Resists shock uncoupling) |
Extreme (Internal anti-vibration clutch) |
|
EMI / Noise Rejection |
Basic / Functional |
Moderate |
Outstanding (360° Shell Grounding) |
|
Scoop-Proof Design |
No |
No |
Yes (Safe for blind mating) |
Facing long lead times or high minimum order quantities (MOQs) from traditional catalog distributors?
Metabee provides rapid BOM cross-referencing for standard MS5015, 26482, and D38999 part numbers. Send us your part number list for a direct cross-reference with competitive factory pricing and short delivery windows.
Related Post:
MIL-DTL-5015 vs MIL-DTL-38999: Choosing the Right Connector for Your Application
Key Industrial Selection Factors: Beyond the Standard
When choosing a circular connector for factory machinery, examine these three critical implementation details:
1. Ingress Protection (Washdowns & Coolants)
Ensure your connector and backshell configuration achieve a minimum of IP67, or IP68 for wet sumps and high-pressure cleaning zones. Always verify that backshell sealing grommets match your industrial cable jacket outer diameter (OD) precisely to prevent fluid migration along internal wire bundles.
2. Environmental Compliance (RoHS & REACH)
Legacy military connectors frequently used toxic Olive Drab Cadmium plating. For modern industrial machinery exported to global markets, compliance with RoHS and REACH directives is mandatory.
Metabee recommends Black Zinc Nickel (BZN) or Electroless Nickel plating. These deliver equal or superior corrosion resistance (up to 500 hours salt spray) and excellent conductivity for EMC grounding, without hazardous substances.
3. Termination Method: Solder vs. Crimp
l Solder Contacts (5015 Class A/B, 26482 Series I): Ideal for low-volume runs, custom machinery builds, and field retrofits where dedicated crimping tools are unavailable.
l Crimp Contacts (5015 Class F, 26482 Series II, D38999): Preferred for automated or repetitive wire harness assembly, providing higher tensile retention, gas-tight contact zones, and superior vibration resistance.
Custom Industrial Cable Assemblies & Harnessing

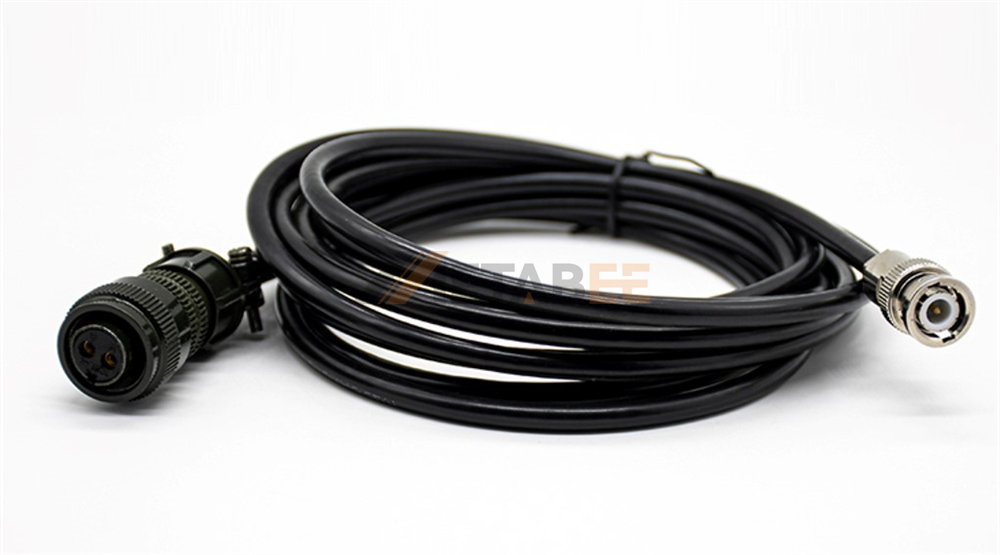

In heavy industrial operations, an interconnect is only as dependable as the wire harness behind it. Improper shielding termination or inadequate strain relief quickly leads to intermittent signal faults and premature wire fatigue.
As an end-to-end interconnect manufacturer, Metabee provides turnkey, factory-tested industrial cable assemblies:
l Heavy-Duty Overmolding: Resilient TPU/PVC overmolds that absorb tensile strain and protect against continuous flexing in robotic cable drag chains.
l 360° Shielded Termination: Proper grounding of copper braid shields to prevent high-frequency noise from corrupting servo encoder signals.
l Conduit & Adapter Integration: Backshells compatible with flexible conduit, Metric (M-threads), and PG fittings to integrate smoothly into existing machine architectures.
l 100% Quality Testing: Every cable assembly undergoes automated testing for continuity, pinout mapping, and dielectric insulation resistance prior to dispatch.
Conclusion & Partnering with Metabee for Industrial Reliability
MIL-SPEC circular connectors like the MS5015, 26482, and D38999 form the backbone of modern, high-uptime manufacturing equipment. By pairing the appropriate locking style, contact density, and RoHS-compliant finish with your operational requirements, you protect your machinery from costly downtime.
Accelerate Your Machine Builds with Metabee
Whether you are sourcing replacements to bypass long lead times or developing custom cable assemblies for a new automation platform, Metabee provides the engineering support and manufacturing agility your project demands:
l Fast BOM Cross-Referencing: Send us your existing connector part numbers for a compatible, cost-effective cross-match within 24 hours.
l Free Engineering Samples: Validate shell fit, pin engagement, and panel cutouts directly on your equipment prototypes.
l Turnkey Cable Assemblies: Collaborate with our technical team to develop custom-length, overmolded harnesses built to your environmental specifications.
Contact Metabee’s Industrial Solutions Team Today or submit your RFQ to discover how our rugged circular interconnects can enhance your equipment's reliability while reducing total sourcing costs.
Related Product
Frequently Asked Questions (FAQ)
Q1: How do I choose between MS5015, 26482, and D38999 for my industrial application?
A: Your choice depends on three primary factors: power requirements, mating speed, and available panel space:
l Choose MS5015 if your machine requires heavy current transmission (up to 150A+) for AC/DC servo motors, CNC spindles, or heavy power feeds where space is not strictly constrained.
l Choose 26482 if your operators need rapid tool-changing or quick field maintenance. Its 1/3-turn bayonet coupling provides fast, tactile locking ideal for automation sensors, test equipment, and compact control boxes.
l Choose D38999 Series III when designing multi-axis robotics, AGVs, or machine vision systems requiring high-density signal pins (up to 128 contacts) in a compact shell, with 100% scoop-proof pin protection and superior 360° EMI/RFI shielding.
Still uncertain which standard fits your electrical envelope? Contact Metabee’s engineering team for a free layout recommendation based on your schematic.
Q2: Are Metabee circular connectors direct drop-in replacements for standard MIL-SPEC parts from other brands?
A: Yes. Because MIL-DTL-5015, MIL-DTL-26482, and MIL-DTL-38999 are standardized specifications governing shell dimensions, thread pitches, and insert arrangements, Metabee connectors are 100% intermateable and intermountable with equivalent standard parts from major legacy manufacturers. You can substitute them directly into your existing panel cutouts and wire harnesses without re-tooling your sheet metal or altering PCB footprints. Send your current BOM part numbers to Metabee for a comprehensive cross-reference quote with expedited lead times.
Q3: Are these connectors compliant with European and global environmental regulations (RoHS and REACH)?
A: Yes. While traditional military connectors historically used Olive Drab Cadmium plating, modern industrial machinery exported to global markets requires cadmium-free solutions. Metabee supplies RoHS- and REACH-compliant plating options, including Black Zinc Nickel (BZN) and Electroless Nickel. These modern platings achieve up to 500 hours of salt spray resistance, exceptional electrical conductivity for EMC shielding, and complete environmental compliance without hazardous substances.
Q4: When should our production team specify crimp contacts instead of solder contacts?
A: Solder contacts (standard on MS5015 Class A/B and 26482 Series I) are best suited for prototype development, low-volume custom machinery builds, or field maintenance where specialized crimping presses and positioners are not on hand.
Crimp contacts (available on MS5015 Class F, 26482 Series II, and D38999) are strongly recommended for repetitive, high-volume production. Crimp terminations offer repeatable gas-tight connections, higher wire pull-out strength, and superior fatigue resistance in high-vibration applications such as robotic cable tracks.
Q5: Can Metabee provide complete custom cable assemblies and wire harnesses, or only standalone connectors?
A: Metabee provides end-to-end turnkey interconnect solutions. In addition to individual plugs, receptacles, and backshells, we manufacture fully assembled, 100% electrically tested industrial cable assemblies. Our capabilities include:
l Custom TPU/PVC overmolding for IP67/IP68 sealing and strain relief
l 360° braided shield grounding to prevent VFD electrical noise
l Integration with high-flex continuous drag chain cables and flexible conduits
Contact our technical sales department with your pinout drawing, cable length, and environmental requirements to request engineering drawings and prototype samples.
